2D Gel Electrophoresis

In the realm of proteomics, the study of proteins, 2D Gel Electrophoresis stands as a cornerstone technique. This method allows scientists to separate and analyze proteins based on two properties: isoelectric point (pI) and molecular weight. By providing a detailed map of proteins within a sample, 2D Gel Electrophoresis offers invaluable insights into protein expression, modifications, and interactions. This blog post delves into the principles, procedures, applications, and advancements of 2D Gel Electrophoresis, highlighting its significance in modern biological research.

Understanding 2D Gel Electrophoresis

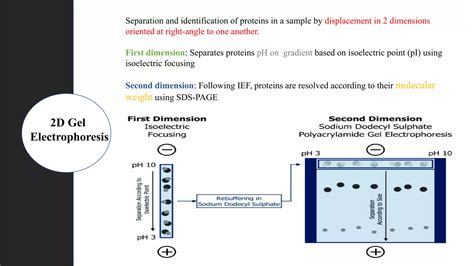

2D Gel Electrophoresis is a powerful technique that combines two different electrophoretic separations to resolve complex protein mixtures. The process involves two main steps: isoelectric focusing (IEF) and sodium dodecyl sulfate-polyacrylamide gel electrophoresis (SDS-PAGE).

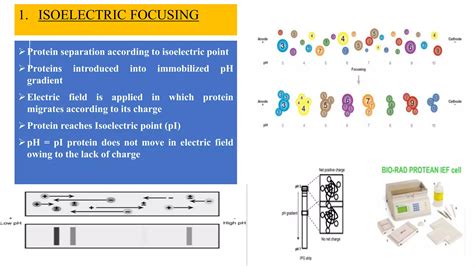

Isoelectric Focusing (IEF)

In the first dimension, proteins are separated based on their isoelectric point (pI), which is the pH at which a protein carries no net electrical charge. This separation is achieved using a pH gradient gel. Proteins migrate through the gel until they reach the pH that matches their pI, where they stop moving. This step ensures that proteins are separated according to their charge.

Sodium Dodecyl Sulfate-Polyacrylamide Gel Electrophoresis (SDS-PAGE)

In the second dimension, the proteins are further separated based on their molecular weight. The gel from the first dimension is placed on top of an SDS-PAGE gel, and an electric current is applied. The SDS denatures the proteins and gives them a uniform negative charge, allowing them to be separated solely by their size as they migrate through the gel.

Procedures and Techniques

Performing 2D Gel Electrophoresis involves several critical steps, each requiring precision and attention to detail. Below is an overview of the key procedures:

Sample Preparation

Proper sample preparation is crucial for successful 2D Gel Electrophoresis. This step involves:

Collecting and lysing cells or tissues to extract proteins.
Removing contaminants such as salts, lipids, and nucleic acids that can interfere with the separation process.
Concentrating the protein sample to ensure adequate loading onto the gel.

Isoelectric Focusing (IEF)

For the first dimension, proteins are loaded onto an IEF strip, which contains a pH gradient. The strip is placed in an IEF apparatus, and an electric current is applied. Proteins migrate through the strip until they reach their pI and focus into sharp bands.

Equilibration

After IEF, the strip is equilibrated in a buffer containing SDS to denature the proteins and prepare them for the second dimension. This step ensures that all proteins have a uniform negative charge, which is essential for size-based separation.

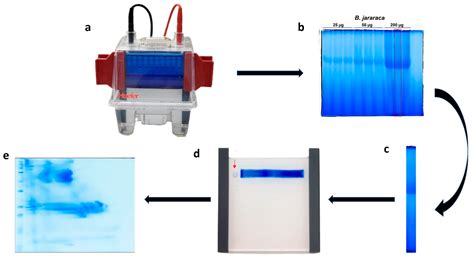

SDS-PAGE

The equilibrated strip is then placed on top of an SDS-PAGE gel, and electrophoresis is performed. Proteins are separated based on their molecular weight, resulting in a 2D gel with spots representing individual proteins.

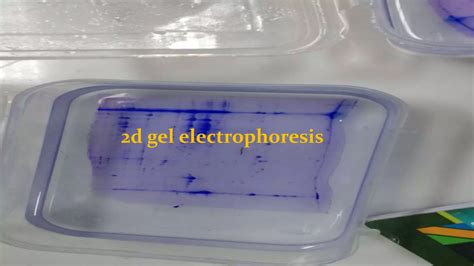

Staining and Imaging

After electrophoresis, the gel is stained to visualize the protein spots. Common staining methods include Coomassie Blue, silver staining, and fluorescent dyes. The stained gel is then imaged using a gel documentation system, and the resulting image is analyzed using specialized software to identify and quantify the protein spots.

🔍 Note: The choice of staining method depends on the sensitivity required and the downstream applications. For example, silver staining is more sensitive than Coomassie Blue but may interfere with mass spectrometry analysis.

Applications of 2D Gel Electrophoresis

2D Gel Electrophoresis has a wide range of applications in proteomics and biological research. Some of the key applications include:

Protein Identification and Quantification

By separating proteins based on two properties, 2D Gel Electrophoresis allows for the identification and quantification of individual proteins within a complex mixture. This is particularly useful in comparative proteomics, where protein expression levels are compared between different samples or conditions.

Post-Translational Modifications

2D Gel Electrophoresis can detect post-translational modifications (PTMs) such as phosphorylation, glycosylation, and acetylation. These modifications can alter the charge and molecular weight of proteins, causing them to shift their position on the 2D gel. This makes 2D Gel Electrophoresis a valuable tool for studying protein regulation and signaling pathways.

Biomarker Discovery

In clinical research, 2D Gel Electrophoresis is used to identify biomarkers for diseases such as cancer, diabetes, and neurodegenerative disorders. By comparing protein expression profiles between healthy and diseased samples, researchers can identify proteins that are differentially expressed and may serve as biomarkers for diagnosis or prognosis.

Drug Discovery and Development

2D Gel Electrophoresis plays a crucial role in drug discovery by helping to identify protein targets and understand the mechanisms of action of potential therapeutic compounds. It can also be used to monitor protein expression changes in response to drug treatment, providing insights into drug efficacy and toxicity.

Advancements and Future Directions

While 2D Gel Electrophoresis has been a staple in proteomics for decades, ongoing advancements continue to enhance its capabilities and expand its applications. Some of the recent developments include:

Improved Gel Technology

Advances in gel technology have led to the development of higher-resolution gels that can separate proteins with greater precision. For example, immobilized pH gradient (IPG) strips provide a more stable and reproducible pH gradient, improving the consistency of IEF separations.

Mass Spectrometry Integration

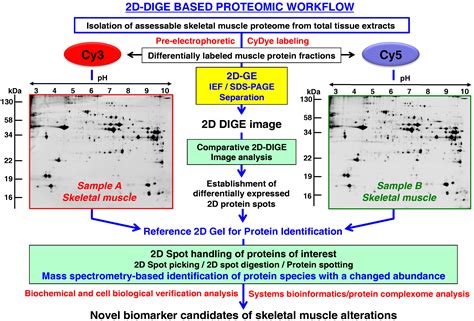

The integration of 2D Gel Electrophoresis with mass spectrometry (MS) has revolutionized protein identification. After separation on a 2D gel, protein spots can be excised, digested with proteases, and analyzed by MS to determine their amino acid sequences. This combination of techniques provides a powerful tool for proteome-wide analysis.

Automated Analysis and Software Tools

The development of automated analysis and software tools has streamlined the process of 2D gel image analysis. These tools can detect and quantify protein spots, align multiple gels, and perform statistical analysis to identify differentially expressed proteins. Some popular software tools include ImageMaster, PDQuest, and Delta2D.

Alternative Separation Techniques

While 2D Gel Electrophoresis remains a valuable technique, alternative separation methods such as liquid chromatography (LC) and capillary electrophoresis (CE) are gaining popularity. These methods offer advantages such as higher throughput, better reproducibility, and compatibility with MS analysis. However, they may not provide the same level of resolution as 2D gels for certain applications.

In conclusion, 2D Gel Electrophoresis continues to be a vital tool in proteomics, offering unparalleled resolution and versatility for protein separation and analysis. Its applications range from basic research to clinical diagnostics and drug discovery, making it an indispensable technique in modern biological research. As technology advances, the integration of 2D Gel Electrophoresis with other analytical methods and the development of new software tools will further enhance its capabilities, paving the way for new discoveries and innovations in the field of proteomics.
