240 Volt Wiring

Electrical wiring is a critical aspect of any building project, ensuring that power is safely and efficiently distributed throughout the structure. One of the most common and essential types of wiring is 240 Volt Wiring. This type of wiring is used for high-power appliances and systems that require more than the standard 120 volts provided by typical household outlets. Understanding the intricacies of 240 Volt Wiring is crucial for both professionals and DIY enthusiasts to ensure safety and compliance with electrical codes.

Table of Contents

Understanding 240 Volt Wiring

240 Volt Wiring is designed to handle higher power demands, making it ideal for appliances such as electric stoves, water heaters, and air conditioners. Unlike 120-volt circuits, which use a single hot wire and a neutral wire, 240-volt circuits use two hot wires and no neutral wire. This configuration allows for the delivery of twice the voltage, enabling the operation of high-power devices.

Components of 240 Volt Wiring

To understand 240 Volt Wiring, it's essential to familiarize yourself with its key components:

Hot Wires: These are the live wires that carry the electrical current. In a 240-volt circuit, there are two hot wires, often colored black and red.
Ground Wire: This wire provides a safe path for electrical current to flow in case of a fault, protecting users from electrical shock.
Neutral Wire: Unlike 120-volt circuits, 240-volt circuits do not use a neutral wire. The absence of a neutral wire is what allows for the higher voltage.

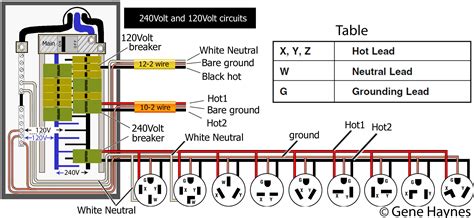

Wiring Diagram for 240 Volt Circuits

Creating a 240 Volt Wiring diagram involves understanding the layout and connections of the wires. Below is a basic diagram for a 240-volt circuit:

Wire Color	Function
Black	Hot Wire 1
Red	Hot Wire 2
Green or Bare	Ground Wire

This diagram illustrates the basic components of a 240-volt circuit. The black and red wires are the hot wires, while the green or bare wire is the ground wire. The absence of a neutral wire is a key characteristic of 240-volt circuits.

Installing 240 Volt Wiring

Installing 240 Volt Wiring requires careful planning and adherence to electrical codes. Here are the steps to install a 240-volt circuit:

Plan the Circuit: Determine the location of the circuit breaker in the electrical panel and the outlet or appliance that will be powered by the 240-volt circuit.
Run the Wires: Use appropriate gauge wires for the power requirements of the appliance. For example, a 30-amp circuit for an electric stove may require 10-gauge wires.
Connect the Wires to the Circuit Breaker: Attach the black and red wires to the circuit breaker terminals and the ground wire to the ground bus bar in the electrical panel.
Install the Outlet or Appliance: Connect the wires to the outlet or appliance, ensuring that the hot wires are connected to the appropriate terminals and the ground wire is securely attached.
Test the Circuit: Turn on the circuit breaker and test the outlet or appliance to ensure it is functioning correctly.

🔧 Note: Always turn off the power at the main electrical panel before working on any wiring to prevent electrical shock.

Safety Precautions for 240 Volt Wiring

Working with 240 Volt Wiring involves handling high voltages, which can be dangerous if not done correctly. Here are some safety precautions to keep in mind:

Turn Off Power: Always turn off the power at the main electrical panel before starting any wiring work.
Use Proper Tools: Use insulated tools designed for electrical work to minimize the risk of electrical shock.
Follow Electrical Codes: Adhere to local electrical codes and regulations to ensure the safety and legality of your wiring.
Inspect Wires: Regularly inspect wires for any signs of damage or wear, and replace them if necessary.

By following these safety precautions, you can minimize the risks associated with 240 Volt Wiring and ensure a safe and efficient electrical system.

Common Applications of 240 Volt Wiring

240 Volt Wiring is used in a variety of applications where high power is required. Some of the most common applications include:

Electric Stoves and Ranges: These appliances require a significant amount of power to operate, making 240-volt circuits ideal.
Water Heaters: Electric water heaters often use 240-volt circuits to provide the necessary power for heating water efficiently.
Air Conditioners: Central air conditioning systems and some window units require 240-volt circuits to function properly.
Electric Dryers: Clothes dryers typically use 240-volt circuits to generate the heat needed for drying clothes.
Welding Equipment: Welding machines often require high power, making 240-volt circuits a common choice.

These applications highlight the versatility and importance of 240 Volt Wiring in both residential and commercial settings.

Troubleshooting 240 Volt Wiring Issues

Even with proper installation, issues can arise with 240 Volt Wiring. Here are some common problems and their solutions:

No Power: If the appliance or outlet is not receiving power, check the circuit breaker to ensure it is not tripped. Also, inspect the wires for any loose connections or damage.
Overheating: If the wires or outlet are overheating, it may indicate a short circuit or overloaded circuit. Check for any signs of overheating and address the issue promptly.
Frequent Tripping: If the circuit breaker frequently trips, it may be due to an overloaded circuit or a short circuit. Reduce the load on the circuit or inspect for any short circuits.

By addressing these issues promptly, you can ensure the continued safe and efficient operation of your 240-volt circuit.

🛠️ Note: If you are unsure about any aspect of troubleshooting or repairing 240 Volt Wiring, it is best to consult a licensed electrician to avoid potential hazards.

Maintaining 240 Volt Wiring

Maintaining 240 Volt Wiring is essential for ensuring the longevity and safety of your electrical system. Regular maintenance can help prevent issues and ensure that your wiring remains in good condition. Here are some maintenance tips:

Inspect Wires: Regularly inspect the wires for any signs of damage, wear, or corrosion. Replace any damaged wires promptly.
Check Connections: Ensure that all connections are secure and free from corrosion. Tighten any loose connections and clean any corroded terminals.
Test Circuit Breakers: Periodically test the circuit breakers to ensure they are functioning correctly. Replace any faulty breakers.
Keep Area Clear: Maintain a clear area around the electrical panel and outlets to prevent obstructions and ensure easy access for maintenance.

By following these maintenance tips, you can extend the life of your 240 Volt Wiring and ensure its safe operation.

240 Volt Wiring is a critical component of any electrical system that requires high power. Understanding the components, installation process, safety precautions, and maintenance requirements is essential for ensuring the safe and efficient operation of your electrical system. By following the guidelines outlined in this post, you can confidently work with 240 Volt Wiring and ensure the safety and reliability of your electrical installations.
