220V Outlet Wiring

Electrical work can be daunting, especially when it involves tasks like 220V outlet wiring. Understanding the basics of 220V outlet wiring is crucial for ensuring safety and functionality in your electrical projects. Whether you're a DIY enthusiast or a professional electrician, this guide will walk you through the essential steps and considerations for wiring a 220V outlet.

Table of Contents

Understanding 220V Outlets

Before diving into the wiring process, it’s important to understand what a 220V outlet is and how it differs from standard 120V outlets. A 220V outlet, also known as a 240V outlet in some regions, is designed to handle higher voltage and current, making it suitable for heavy-duty appliances like electric stoves, dryers, and air conditioners.

Tools and Materials Needed

To successfully wire a 220V outlet, you’ll need the following tools and materials:

220V outlet (NEMA 6-20 or NEMA 6-30, depending on your needs)
¹²⁄₂ or ¹⁰⁄₂ NM cable (depending on the amp rating of your outlet)
Wire strippers
Screwdriver
Circuit tester
Wire nuts
Electrical tape
Safety glasses
Non-contact voltage tester

Safety Precautions

Safety is paramount when working with electrical wiring. Always follow these precautions:

Turn off the power at the main circuit breaker before starting any work.
Use a non-contact voltage tester to ensure the wires are not live.
Wear safety glasses to protect your eyes from debris.
Avoid working in damp or wet conditions.
Keep a fire extinguisher nearby in case of emergencies.

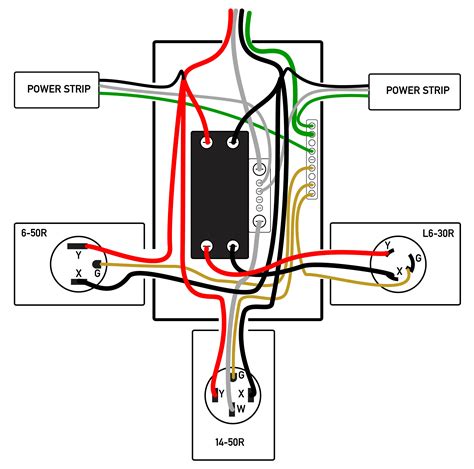

Wiring a 220V Outlet

Wiring a 220V outlet involves several steps. Follow this guide carefully to ensure a safe and functional installation.

Step 1: Prepare the Wiring

Begin by preparing the wiring. You will need a ¹²⁄₂ or ¹⁰⁄₂ NM cable, depending on the amp rating of your outlet. Strip about 6 inches of the outer jacket from the cable to expose the individual wires.

Step 2: Identify the Wires

In a ¹²⁄₂ or ¹⁰⁄₂ NM cable, you will find two hot wires (usually black and red), a neutral wire (white), and a ground wire (bare or green). For a 220V outlet, you will not use the neutral wire. The hot wires will be connected to the brass screws on the outlet, and the ground wire will be connected to the green screw.

Step 3: Connect the Wires

Connect the wires to the outlet as follows:

Strip about ½ inch of insulation from the ends of the hot wires (black and red).
Connect one hot wire to the brass screw on one side of the outlet.
Connect the other hot wire to the brass screw on the other side of the outlet.
Strip about ½ inch of insulation from the end of the ground wire.
Connect the ground wire to the green screw on the outlet.

Step 4: Secure the Wires

Use wire nuts to secure the connections. Twist the wire nuts onto the ends of the wires and tighten them firmly. Wrap electrical tape around the wire nuts for added security.

Step 5: Install the Outlet

Place the outlet into the electrical box and secure it with screws. Make sure the outlet is flush with the wall and that all wires are neatly tucked inside the box.

Step 6: Test the Outlet

Turn the power back on at the main circuit breaker. Use a circuit tester to ensure the outlet is functioning correctly. Plug in a 220V appliance to verify that the outlet is providing the correct voltage.

🔧 Note: Always double-check your connections before turning the power back on. Loose or improperly connected wires can cause shorts or fires.

Common Mistakes to Avoid

When wiring a 220V outlet, it’s easy to make mistakes that can compromise safety and functionality. Here are some common pitfalls to avoid:

Incorrect Wire Gauge: Using the wrong gauge of wire can lead to overheating and potential fires. Always use the appropriate gauge for your outlet’s amp rating.
Improper Wire Connections: Loose or improperly connected wires can cause shorts and fires. Ensure all connections are tight and secure.
Forgetting the Ground Wire: The ground wire is crucial for safety. Always connect the ground wire to the green screw on the outlet.
Not Testing the Outlet: Always test the outlet with a circuit tester before using it to ensure it is functioning correctly.

Troubleshooting 220V Outlet Issues

Even with careful installation, issues can arise with 220V outlets. Here are some common problems and their solutions:

Outlet Not Working

If the outlet is not working, check the following:

Ensure the circuit breaker is not tripped.
Verify that the wires are properly connected to the outlet.
Use a circuit tester to check for power at the outlet.

Outlet Sparking

If the outlet is sparking, it could be due to loose connections or improper wiring. Turn off the power and check the following:

Tighten all wire connections.
Ensure the wires are properly stripped and connected.
Replace the outlet if necessary.

Outlet Overheating

If the outlet is overheating, it could be due to an incorrect wire gauge or overloaded circuit. Check the following:

Ensure the wire gauge is appropriate for the outlet’s amp rating.
Check for any signs of overheating or damage to the wires.
Reduce the load on the circuit if necessary.

🔧 Note: If you encounter any issues that you cannot resolve, it's best to consult a licensed electrician to avoid potential hazards.

Maintaining Your 220V Outlet

Maintaining your 220V outlet is essential for ensuring its longevity and safety. Here are some tips for maintaining your outlet:

Regularly inspect the outlet for any signs of damage or wear.
Keep the outlet clean and free of debris.
Avoid overloading the outlet with too many appliances.
Use surge protectors to safeguard against power surges.

By following these maintenance tips, you can ensure that your 220V outlet remains safe and functional for years to come.

220V Outlet Wiring for Different Appliances

Different appliances require different types of 220V outlets. Here’s a guide to wiring 220V outlets for common appliances:

Electric Stoves

Electric stoves typically require a NEMA 14-50 outlet. This outlet has four prongs and is designed to handle the high power requirements of electric stoves. The wiring process is similar to that of a standard 220V outlet, but you will need to use a ⁶⁄₃ NM cable for the wiring.

Electric Dryers

Electric dryers usually require a NEMA 10-30 outlet. This outlet has three prongs and is designed to handle the power requirements of electric dryers. The wiring process is similar to that of a standard 220V outlet, but you will need to use a ¹⁰⁄₃ NM cable for the wiring.

Air Conditioners

Air conditioners can require different types of 220V outlets depending on their power requirements. For smaller units, a NEMA 6-20 outlet may be sufficient. For larger units, a NEMA 6-30 outlet may be necessary. The wiring process is similar to that of a standard 220V outlet, but you will need to use the appropriate gauge of wire for the outlet’s amp rating.

220V Outlet Wiring for Different Regions

Different regions have different electrical standards and requirements. Here’s a guide to wiring 220V outlets for different regions:

United States

In the United States, 220V outlets are typically wired using a NEMA 6-20 or NEMA 6-30 outlet. The wiring process involves using a ¹²⁄₂ or ¹⁰⁄₂ NM cable, depending on the amp rating of the outlet. The hot wires are connected to the brass screws on the outlet, and the ground wire is connected to the green screw.

Canada

In Canada, 220V outlets are typically wired using a NEMA 6-20 or NEMA 6-30 outlet. The wiring process is similar to that of the United States, but Canadian electrical codes may have additional requirements. Always consult local electrical codes before beginning any wiring project.

Europe

In Europe, 220V outlets are typically wired using a CEE ⁷⁄₅ or CEE ⁷⁄₄ outlet. The wiring process involves using a three-core cable with a live wire, a neutral wire, and a ground wire. The live wire is connected to the live terminal on the outlet, the neutral wire is connected to the neutral terminal, and the ground wire is connected to the ground terminal.

Always consult local electrical codes and regulations before beginning any wiring project. Electrical standards and requirements can vary significantly between regions, so it's important to ensure that your wiring meets local standards.

220V Outlet Wiring for Different Cable Types

Different cable types are used for 220V outlet wiring depending on the application and local electrical codes. Here’s a guide to wiring 220V outlets for different cable types:

Non-Metallic (NM) Cable

Non-metallic (NM) cable is commonly used for residential wiring in the United States and Canada. It consists of two or more insulated wires wrapped in a non-metallic sheath. For 220V outlet wiring, you will typically use a ¹²⁄₂ or ¹⁰⁄₂ NM cable, depending on the amp rating of the outlet.

Metallic Conduit

Metallic conduit is often used in commercial and industrial settings. It provides additional protection for the wires and is required in some applications by local electrical codes. For 220V outlet wiring, you will typically use individual wires run through the conduit. The wires are connected to the outlet in the same manner as with NM cable.

Armored Cable (AC)

Armored cable (AC) is similar to NM cable but has a flexible metal sheath for added protection. It is commonly used in residential and commercial settings. For 220V outlet wiring, you will typically use a ¹²⁄₂ or ¹⁰⁄₂ AC cable, depending on the amp rating of the outlet.

220V Outlet Wiring for Different Amp Ratings

220V outlets come in different amp ratings to accommodate various appliances. Here’s a guide to wiring 220V outlets for different amp ratings:

20 Amp Outlets

20 amp 220V outlets are commonly used for smaller appliances like air conditioners and some power tools. They typically use a NEMA 6-20 outlet and a ¹²⁄₂ NM cable. The wiring process is the same as for a standard 220V outlet, with the hot wires connected to the brass screws and the ground wire connected to the green screw.

30 Amp Outlets

30 amp 220V outlets are commonly used for larger appliances like electric dryers and some electric ranges. They typically use a NEMA 6-30 outlet and a ¹⁰⁄₂ NM cable. The wiring process is the same as for a standard 220V outlet, with the hot wires connected to the brass screws and the ground wire connected to the green screw.

50 Amp Outlets

50 amp 220V outlets are commonly used for high-power appliances like electric stoves and some air conditioners. They typically use a NEMA 14-50 outlet and a ⁶⁄₃ NM cable. The wiring process is similar to that of a standard 220V outlet, but you will need to use a four-prong outlet and connect the neutral wire to the appropriate terminal.

220V Outlet Wiring for Different Applications

220V outlets are used in a variety of applications, from residential to commercial settings. Here’s a guide to wiring 220V outlets for different applications:

Residential Wiring

In residential settings, 220V outlets are commonly used for appliances like electric stoves, dryers, and air conditioners. The wiring process typically involves using NM cable and a standard 220V outlet. Always consult local electrical codes and regulations before beginning any wiring project.

Commercial Wiring

In commercial settings, 220V outlets are often used for larger appliances and equipment. The wiring process may involve using metallic conduit or armored cable for added protection. Always consult local electrical codes and regulations before beginning any wiring project.

Industrial Wiring

In industrial settings, 220V outlets are used for heavy-duty equipment and machinery. The wiring process may involve using larger gauge wires and metallic conduit for added protection. Always consult local electrical codes and regulations before beginning any wiring project.

220V Outlet Wiring for Different Outlet Types

Different types of 220V outlets are designed for specific applications. Here’s a guide to wiring different types of 220V outlets:

NEMA 6-20 Outlets

NEMA 6-20 outlets are commonly used for 20 amp 220V applications. They have two hot wires and a ground wire. The wiring process involves using a ¹²⁄₂ NM cable and connecting the hot wires to the brass screws on the outlet and the ground wire to the green screw.

NEMA 6-30 Outlets

NEMA 6-30 outlets are commonly used for 30 amp 220V applications. They have two hot wires and a ground wire. The wiring process involves using a ¹⁰⁄₂ NM cable and connecting the hot wires to the brass screws on the outlet and the ground wire to the green screw.

NEMA 14-50 Outlets

NEMA 14-50 outlets are commonly used for 50 amp 220V applications. They have two hot wires, a neutral wire, and a ground wire. The wiring process involves using a ⁶⁄₃ NM cable and connecting the hot wires to the brass screws on the outlet, the neutral wire to the silver screw, and the ground wire to the green screw.

220V Outlet Wiring for Different Wire Gauges

Different wire gauges are used for 220V outlet wiring depending on the amp rating of the outlet. Here’s a guide to wiring 220V outlets for different wire gauges:

12 Gauge Wire

12 gauge wire is commonly used for 20 amp 220V outlets. It is suitable for smaller appliances and power tools. The wiring process involves using a ¹²⁄₂ NM cable and connecting the hot wires to the brass screws on the outlet and the ground wire to the green screw.

10 Gauge Wire

10 gauge wire is commonly used for 30 amp 220V outlets. It is suitable for larger appliances like electric dryers and some electric ranges. The wiring process involves using a ¹⁰⁄₂ NM cable and connecting the hot wires to the brass screws on the outlet and the ground wire to the green screw.

6 Gauge Wire

6 gauge wire is commonly used for 50 amp 220V outlets. It is suitable for high-power appliances like electric stoves and some air conditioners. The wiring process involves using a ⁶⁄₃ NM cable and connecting the hot wires to the brass screws on the outlet, the neutral wire to the silver screw, and the ground wire to the green screw.

220V Outlet Wiring for Different Circuit Breakers

Different circuit breakers are used for 220V outlet wiring depending on the amp rating of the outlet. Here’s a guide to wiring 220V outlets for different circuit breakers:

20 Amp Circuit Breakers

20 amp circuit breakers are commonly used for 20 amp 220V outlets. They provide protection against overloads and short circuits. The wiring process involves using a ¹²⁄₂ NM cable and connecting the hot wires to the brass screws on the outlet and the ground wire to the green screw.

30 Amp Circuit Breakers

30 amp circuit breakers are commonly used for 30 amp 220V outlets. They provide protection against overloads and short circuits. The wiring process involves using a ¹⁰⁄₂ NM cable and connecting the hot wires to the brass screws on the outlet and the ground wire to the green screw.

50 Amp Circuit Breakers

50 amp circuit breakers are commonly used for 50 amp 220V outlets. They provide protection against overloads and short circuits. The wiring process involves using a ⁶⁄₃ NM cable and connecting the hot wires to the brass screws on the outlet, the neutral wire to the silver screw, and the ground wire to the green screw.
