Electrical wiring is a critical aspect of any construction or renovation project. One of the most commonly used types of wire is the 20 AWG wire. This wire is versatile and suitable for a variety of applications, making it a staple in both residential and commercial settings. Understanding the properties, uses, and installation techniques of 20 AWG wire can help ensure that your electrical projects are safe and efficient.
What is 20 AWG Wire?
The term 20 AWG stands for 20 American Wire Gauge, a standardized system for measuring the diameter of round, solid, nonferrous, electrically conducting wire. The lower the gauge number, the thicker the wire. 20 AWG wire is relatively thin, making it ideal for low-current applications. It is commonly used in electronics, telecommunications, and various other low-voltage applications.
Properties of 20 AWG Wire
20 AWG wire has several key properties that make it suitable for specific applications:
- Diameter: Approximately 0.812 mm (0.032 inches).
- Current Carrying Capacity: Typically rated for up to 5 amperes, depending on the insulation type and environmental conditions.
- Insulation: Commonly available with PVC (Polyvinyl Chloride) or Teflon insulation, which provides good electrical insulation and durability.
- Flexibility: Highly flexible, making it easy to bend and route through tight spaces.
- Resistance: Has a resistance of approximately 16.15 ohms per 1000 feet at 20°C.
Common Uses of 20 AWG Wire
20 AWG wire is used in a wide range of applications due to its versatility and reliability. Some of the most common uses include:
- Electronics: Often used in electronic devices for connecting components such as resistors, capacitors, and integrated circuits.
- Telecommunications: Used in telephone and data cables for transmitting signals over short distances.
- Automotive Wiring: Utilized in automotive electrical systems for connecting various components and sensors.
- Home Automation: Ideal for low-voltage control circuits in smart home systems.
- Audio and Video: Used in audio and video cables for connecting speakers, amplifiers, and other AV equipment.
Installation Tips for 20 AWG Wire
Proper installation of 20 AWG wire is crucial for ensuring safety and functionality. Here are some tips to help you with the installation process:
- Choose the Right Insulation: Select the appropriate insulation type based on the environment where the wire will be used. PVC is suitable for most indoor applications, while Teflon is better for high-temperature or outdoor use.

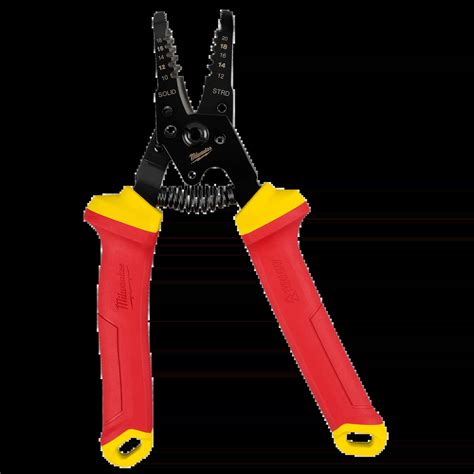

- Use Proper Tools: Use wire strippers, crimpers, and other tools designed for 20 AWG wire to avoid damaging the wire or insulation.
- Secure Connections: Ensure that all connections are secure and properly insulated to prevent short circuits or electrical hazards.
- Avoid Sharp Bends: Be cautious when bending the wire to avoid kinking or damaging the conductors.
- Follow Safety Guidelines: Always turn off the power supply before working on electrical circuits and follow local electrical codes and regulations.
🔧 Note: Always double-check your connections and use appropriate safety gear when working with electrical wiring.
Types of 20 AWG Wire
20 AWG wire comes in various types, each suited for different applications. Some of the most common types include:
- Solid Conductor: Consists of a single solid wire, making it ideal for fixed installations where flexibility is not a concern.
- Stranded Conductor: Made up of multiple smaller wires twisted together, providing greater flexibility and durability, especially in applications where the wire needs to be bent or moved frequently.
- Shielded Wire: Features an additional layer of shielding to protect against electromagnetic interference (EMI), making it suitable for sensitive electronic applications.
- Ribbon Cable: A flat cable consisting of multiple 20 AWG wires arranged in parallel, commonly used in computer and electronic devices for connecting components.
Selecting the Right 20 AWG Wire
Choosing the right 20 AWG wire for your project depends on several factors. Consider the following when making your selection:
- Application: Determine the specific application and the environmental conditions where the wire will be used.
- Insulation Type: Select the appropriate insulation material based on the temperature, moisture, and chemical exposure.
- Conductor Type: Choose between solid and stranded conductors based on the flexibility and durability requirements.
- Length: Measure the required length of the wire to ensure you have enough for your project without excessive waste.
- Color Coding: Use color-coded wires to easily identify different circuits and connections.
Safety Precautions When Working with 20 AWG Wire
Working with electrical wiring requires careful attention to safety. Here are some important precautions to keep in mind when handling 20 AWG wire:
- Turn Off Power: Always turn off the power supply before working on any electrical circuit.
- Use Insulated Tools: Use insulated tools to avoid accidental contact with live wires.
- Wear Protective Gear: Wear appropriate protective gear, including gloves and safety glasses.
- Avoid Overloading: Do not exceed the current carrying capacity of the wire to prevent overheating and potential fires.
- Inspect for Damage: Regularly inspect the wire for any signs of damage, such as cuts, cracks, or frayed insulation.
⚠️ Note: Always follow local electrical codes and regulations to ensure compliance and safety.
Troubleshooting Common Issues with 20 AWG Wire
Even with proper installation, issues can arise with 20 AWG wire. Here are some common problems and their solutions:
- Intermittent Connections: Check for loose or corroded connections and tighten or replace as necessary.
- Overheating: Ensure that the wire is not overloaded and that there is adequate ventilation around the connections.
- Electromagnetic Interference (EMI): Use shielded wire or twist the wires together to reduce EMI.
- Insulation Damage: Repair or replace damaged insulation to prevent short circuits and electrical hazards.
- Wire Breakage: Inspect the wire for any signs of physical damage and replace if necessary.
Comparing 20 AWG Wire with Other Gauges
Understanding how 20 AWG wire compares to other gauges can help you make informed decisions for your projects. Here is a comparison table:
| Gauge | Diameter (mm) | Current Carrying Capacity (Amperes) | Common Uses |
|---|---|---|---|
| 18 AWG | 1.024 | 10-15 | Lighting circuits, small appliances |
| 20 AWG | 0.812 | 5 | Electronics, telecommunications, automotive wiring |
| 22 AWG | 0.644 | 3 | Low-current applications, small electronics |
| 24 AWG | 0.511 | 2 | Telephone lines, low-voltage control circuits |
As shown in the table, 20 AWG wire is thinner and has a lower current carrying capacity compared to 18 AWG wire, making it suitable for low-current applications. However, it is thicker and more robust than 22 AWG and 24 AWG wires, providing better conductivity and durability.
Conclusion
20 AWG wire is a versatile and reliable choice for a wide range of electrical applications. Its thin diameter and low current carrying capacity make it ideal for electronics, telecommunications, and automotive wiring. By understanding the properties, uses, and installation techniques of 20 AWG wire, you can ensure that your electrical projects are safe, efficient, and compliant with local regulations. Always prioritize safety and follow best practices when working with electrical wiring to avoid potential hazards and ensure the longevity of your installations.
