#2 Aluminum Wire

In the world of electrical wiring, #2 Aluminum Wire stands out as a versatile and efficient choice for various applications. This type of wire is widely used in residential, commercial, and industrial settings due to its excellent conductivity and cost-effectiveness. Understanding the properties, uses, and installation guidelines of #2 Aluminum Wire can help ensure safe and reliable electrical systems.

Table of Contents

Understanding #2 Aluminum Wire

#2 Aluminum Wire is a type of electrical conductor made from aluminum, a lightweight and highly conductive metal. The "#2" designation refers to the American Wire Gauge (AWG) system, which measures the diameter of the wire. A #2 AWG wire has a diameter of approximately 0.2576 inches, making it suitable for medium to high current applications.

Aluminum wire is preferred in many scenarios due to its advantages over copper wire:

Cost-Effective: Aluminum is generally less expensive than copper, making it a more economical choice for large-scale projects.
Lightweight: Aluminum is lighter than copper, which can be beneficial in applications where weight is a concern, such as in aerospace or automotive industries.
Conductivity: While not as conductive as copper, aluminum still offers good electrical conductivity, making it suitable for many electrical applications.

Applications of #2 Aluminum Wire

#2 Aluminum Wire is used in a variety of electrical applications, including:

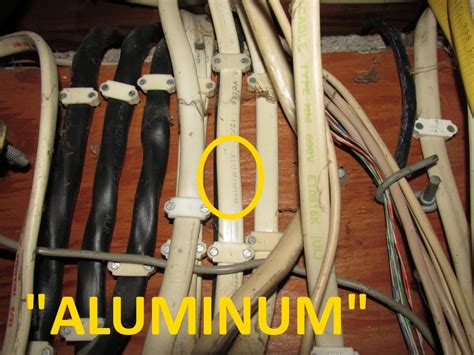

Residential Wiring: Often used in residential electrical systems for branch circuits, feeders, and service entrance conductors.
Commercial Wiring: Commonly employed in commercial buildings for power distribution, lighting, and other electrical needs.
Industrial Wiring: Utilized in industrial settings for machinery, equipment, and power distribution systems.
Utility Lines: Used in overhead and underground utility lines for transmitting electrical power over long distances.

Installation Guidelines for #2 Aluminum Wire

Proper installation of #2 Aluminum Wire is crucial for ensuring safety and reliability. Here are some key steps and considerations:

Material Selection

Choose the appropriate type of #2 Aluminum Wire for your application. Common types include:

THHN/THWN: Thermoplastic High Heat-resistant Nylon-coated/Water-resistant Nylon-coated wire, suitable for dry and wet locations.

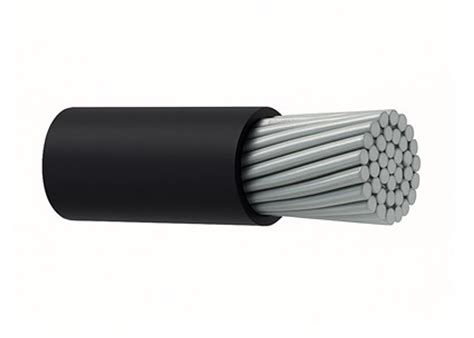

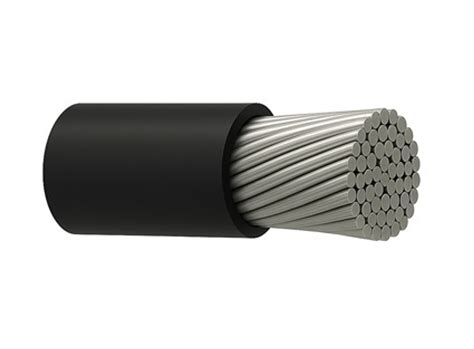

XHHW: Cross-linked Polyethylene High Heat-resistant Water-resistant wire, ideal for high-temperature applications.

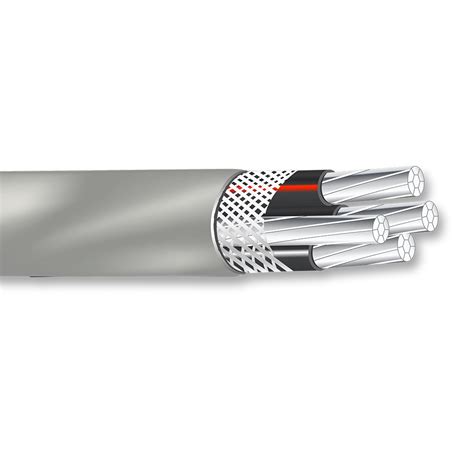

USE: Underground Service Entrance wire, designed for direct burial and underground installations.

Sizing and Ampacity

Ensure that the wire size and ampacity (current-carrying capacity) meet the requirements of your electrical system. #2 Aluminum Wire typically has an ampacity of 115 amperes in free air and 95 amperes when installed in conduit, according to the National Electrical Code (NEC).

Termination and Connections

Proper termination and connections are essential for the safe and reliable operation of #2 Aluminum Wire. Use approved connectors and terminals designed for aluminum wire to prevent corrosion and ensure a secure connection. Some recommended practices include:

Anti-Oxidant Paste: Apply anti-oxidant paste to the wire before making connections to prevent oxidation and ensure a good electrical contact.
Crimp Connectors: Use crimp connectors specifically designed for aluminum wire to create secure and reliable connections.
Mechanical Connectors: Employ mechanical connectors, such as wire nuts or terminal blocks, that are compatible with aluminum wire.

🔧 Note: Always follow the manufacturer's instructions and local electrical codes when installing #2 Aluminum Wire to ensure safety and compliance.

Installation Techniques

When installing #2 Aluminum Wire, follow these best practices:

Bending Radius: Maintain a minimum bending radius of 10 times the wire diameter to prevent damage to the wire.
Support and Protection: Secure the wire using appropriate supports and protect it from physical damage, such as sharp edges or excessive heat.
Conduit Fill: Ensure that the conduit fill does not exceed the maximum allowable fill for the conduit size, as specified in the NEC.

Safety Considerations

Working with #2 Aluminum Wire requires adherence to safety guidelines to prevent electrical hazards and injuries. Some important safety considerations include:

Personal Protective Equipment (PPE): Wear appropriate PPE, including insulated gloves, safety glasses, and protective clothing, when handling electrical wires.
Lockout/Tagout: Follow lockout/tagout procedures to ensure that electrical circuits are de-energized and cannot be accidentally turned on during maintenance or repair work.
Grounding: Properly ground electrical systems to protect against electrical shocks and equipment damage.

Additionally, be aware of the potential for corrosion when using aluminum wire. Aluminum can corrode when in contact with certain metals, such as copper, leading to increased resistance and potential overheating. To mitigate this risk, use approved connectors and terminals designed for aluminum wire and apply anti-oxidant paste to the connections.

⚠️ Note: Always consult local electrical codes and regulations, as well as the manufacturer's guidelines, when working with #2 Aluminum Wire to ensure safety and compliance.

Maintenance and Troubleshooting

Regular maintenance and prompt troubleshooting are essential for ensuring the longevity and reliability of electrical systems using #2 Aluminum Wire. Some key maintenance tasks and troubleshooting tips include:

Inspection: Regularly inspect electrical wiring for signs of damage, such as corrosion, fraying, or overheating.
Cleaning: Keep electrical connections clean and free of debris to ensure good conductivity.
Tightening: Periodically check and tighten electrical connections to prevent loosening due to vibration or thermal cycling.
Testing: Use appropriate testing equipment, such as multimeters or clamp meters, to verify the integrity of electrical circuits and connections.

If you encounter issues with #2 Aluminum Wire, such as overheating, intermittent connections, or reduced performance, follow these troubleshooting steps:

Visual Inspection: Check for visible signs of damage or wear, such as corrosion, fraying, or discoloration.
Connection Check: Inspect electrical connections for tightness and signs of overheating or arcing.
Continuity Test: Use a multimeter to perform a continuity test on the wire to ensure it is not broken or damaged.
Load Verification: Verify that the electrical load does not exceed the ampacity rating of the wire.

By following these maintenance and troubleshooting guidelines, you can help ensure the safe and reliable operation of electrical systems using #2 Aluminum Wire.

In conclusion, #2 Aluminum Wire is a versatile and cost-effective choice for various electrical applications. Understanding its properties, proper installation techniques, and safety considerations is crucial for ensuring reliable and safe electrical systems. By following the guidelines outlined in this post, you can make informed decisions about using #2 Aluminum Wire in your electrical projects and maintain the integrity of your electrical systems over time.
