Welding is a critical process in various industries, from automotive to construction, and the quality of the equipment used can significantly impact the outcome. One essential component in welding is the 2 0 welding cable, which plays a crucial role in ensuring a stable and efficient power supply to the welding machine. This post will delve into the importance of 2 0 welding cable, its types, applications, and maintenance tips to help you make informed decisions.
Understanding 2 0 Welding Cable

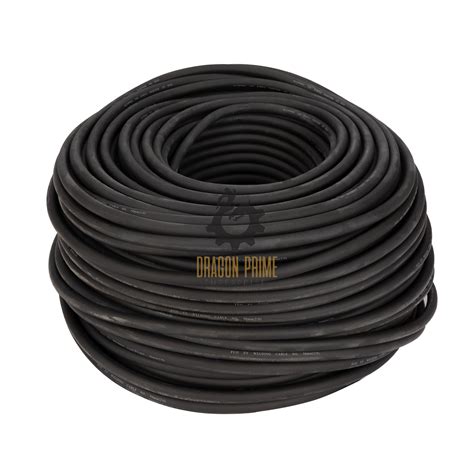

2 0 welding cable is a specialized type of electrical cable designed to handle the high currents and voltages required for welding operations. These cables are typically made from copper or aluminum conductors, with insulation that can withstand high temperatures and harsh environments. The "2 0" designation refers to the American Wire Gauge (AWG) size, which indicates the diameter of the conductor. A 2 0 welding cable has a larger diameter, allowing it to carry more current with less resistance, making it ideal for heavy-duty welding applications.
Types of 2 0 Welding Cable
2 0 welding cable comes in various types, each suited for different welding needs. The main types include:

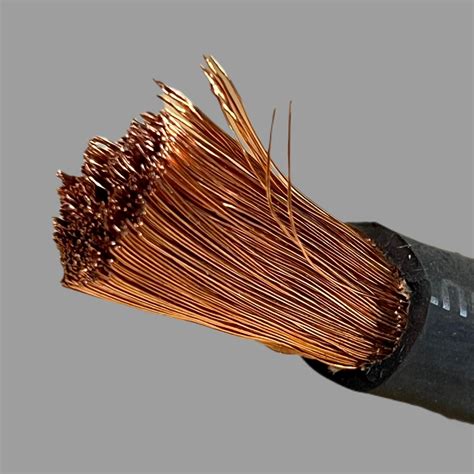

- Copper Welding Cable: Known for its excellent conductivity and durability, copper welding cable is a popular choice for high-current applications. It is more expensive than aluminum but offers better performance.
- Aluminum Welding Cable: Aluminum welding cable is lighter and more cost-effective than copper. It is suitable for applications where weight is a concern, but it has lower conductivity compared to copper.

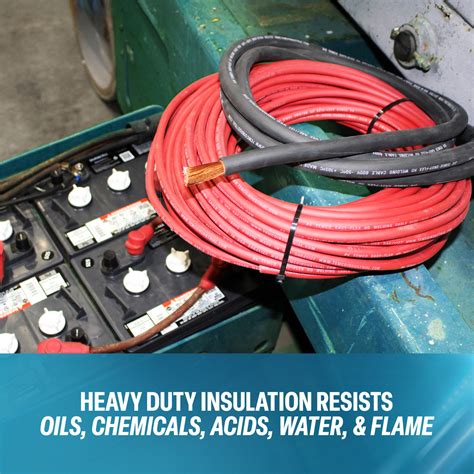

- Rubber-Insulated Welding Cable: This type of cable features a rubber insulation that provides flexibility and resistance to abrasion and chemicals. It is commonly used in portable welding machines.
- PVC-Insulated Welding Cable: PVC-insulated welding cable is more rigid but offers better resistance to heat and oil. It is often used in fixed welding setups.
Applications of 2 0 Welding Cable
2 0 welding cable is used in a wide range of welding applications, including:
- Automotive Industry: In automotive manufacturing, 2 0 welding cable is used for welding car bodies, frames, and other components. Its high current-carrying capacity ensures efficient and reliable welding.
- Construction Industry: In construction, 2 0 welding cable is essential for welding structural steel, pipes, and other metal components. Its durability and flexibility make it suitable for outdoor and harsh environments.
- Manufacturing Industry: In manufacturing, 2 0 welding cable is used for welding various metal parts and assemblies. Its ability to handle high currents makes it ideal for automated welding processes.
- Repair and Maintenance: For repair and maintenance work, 2 0 welding cable is used to weld broken or damaged metal parts. Its portability and reliability make it a valuable tool for on-site repairs.
Selecting the Right 2 0 Welding Cable
Choosing the right 2 0 welding cable is crucial for ensuring safe and efficient welding operations. Here are some factors to consider:
- Conductor Material: Decide between copper and aluminum based on your budget and performance requirements. Copper offers better conductivity, while aluminum is more cost-effective.
- Insulation Type: Choose between rubber and PVC insulation based on the environment and flexibility needs. Rubber insulation is more flexible, while PVC insulation offers better heat and oil resistance.
- Length and Flexibility: Consider the length and flexibility of the cable based on your welding setup. Longer cables may require more flexibility to avoid kinks and damage.
- Current Rating: Ensure the cable can handle the current requirements of your welding machine. A 2 0 welding cable typically has a high current rating, making it suitable for heavy-duty applications.
🔧 Note: Always refer to the manufacturer's specifications to ensure the cable meets your welding machine's requirements.
Maintenance Tips for 2 0 Welding Cable
Maintaining your 2 0 welding cable is essential for prolonging its lifespan and ensuring safe operation. Here are some maintenance tips:
- Regular Inspection: Inspect the cable regularly for any signs of damage, such as cuts, cracks, or exposed conductors. Replace the cable if any damage is found.
- Proper Storage: Store the cable in a cool, dry place away from direct sunlight and heat sources. Avoid coiling the cable too tightly to prevent kinks and damage.
- Cleaning: Clean the cable periodically to remove dirt, grease, and other contaminants. Use a mild detergent and water, then dry the cable thoroughly.
- Avoid Overloading: Do not exceed the cable's current rating to prevent overheating and potential fires. Always use the appropriate cable size for your welding machine.
🔧 Note: Always disconnect the power supply before performing any maintenance or inspection on the welding cable.
Safety Precautions
Working with 2 0 welding cable involves handling high voltages and currents, so safety is paramount. Here are some safety precautions to follow:
- Use Personal Protective Equipment (PPE): Wear appropriate PPE, including gloves, safety glasses, and protective clothing, to protect against electrical hazards and sparks.
- Ensure Proper Grounding: Always ensure the welding machine and cable are properly grounded to prevent electrical shocks.
- Avoid Water and Moisture: Keep the cable and welding area dry to prevent electrical shorts and hazards.
- Follow Manufacturer's Instructions: Always follow the manufacturer's instructions for safe operation and maintenance of the welding cable.
🔧 Note: Never attempt to repair a damaged welding cable yourself. Always replace it with a new one to ensure safety.
Common Issues and Troubleshooting
Even with proper maintenance, issues can arise with 2 0 welding cable. Here are some common problems and troubleshooting tips:
- Overheating: If the cable overheats, it may indicate overloading or poor insulation. Check the current rating and ensure the cable is not damaged.
- Intermittent Power: Intermittent power issues can be caused by loose connections or damaged insulation. Inspect the cable and connections for any signs of damage.
- Sparks and Arcing: Sparks and arcing can occur due to poor grounding or damaged insulation. Ensure proper grounding and inspect the cable for any damage.
🔧 Note: If you encounter persistent issues, consult a professional electrician or welding expert for assistance.
Comparing 2 0 Welding Cable with Other Cable Types
To better understand the advantages of 2 0 welding cable, it's helpful to compare it with other cable types commonly used in welding:
| Cable Type | Conductor Material | Insulation Type | Current Rating | Typical Applications |
|---|---|---|---|---|
| 2 0 Welding Cable | Copper or Aluminum | Rubber or PVC | High | Heavy-duty welding, automotive, construction |
| 4 AWG Welding Cable | Copper or Aluminum | Rubber or PVC | Medium | Light to medium-duty welding, repair work |
| 6 AWG Welding Cable | Copper or Aluminum | Rubber or PVC | Low to Medium | Light-duty welding, hobbyist use |
As shown in the table, 2 0 welding cable offers a higher current rating compared to smaller gauge cables, making it suitable for heavy-duty welding applications. Its robust construction and flexibility also make it a reliable choice for various industries.
🔧 Note: Always match the cable size to the current requirements of your welding machine to ensure safe and efficient operation.
In conclusion, 2 0 welding cable is a vital component in welding operations, providing a stable and efficient power supply to welding machines. Understanding its types, applications, and maintenance requirements can help you make informed decisions and ensure safe and reliable welding. By following the guidelines and safety precautions outlined in this post, you can maximize the performance and lifespan of your 2 0 welding cable, ultimately enhancing your welding projects’ quality and efficiency.
