When it comes to electrical wiring, choosing the right gauge of wire is crucial for ensuring safety and efficiency. One of the most commonly used types of wire is 16 gauge wire. This wire is versatile and suitable for a variety of applications, from household wiring to automotive projects. Understanding the specifications, uses, and installation tips for 16 gauge wire can help you make informed decisions for your electrical needs.
Understanding 16 Gauge Wire
16 gauge wire is a type of electrical wire that has a diameter of approximately 1.29 mm. The gauge system used for wires is based on the American Wire Gauge (AWG) standard, where a lower gauge number indicates a thicker wire. 16 gauge wire is thinner than 14 gauge wire but thicker than 18 gauge wire. This makes it suitable for medium-duty applications where the current requirements are moderate.
Applications of 16 Gauge Wire
16 gauge wire is widely used in various applications due to its versatility and reliability. Some of the common uses include:
- Household Wiring: 16 gauge wire is often used for lighting circuits and other low-current applications in residential settings.
- Automotive Wiring: It is commonly used in automotive electrical systems for wiring components like lights, sensors, and other accessories.
- Electronics: In electronic devices, 16 gauge wire is used for power supply connections and other internal wiring.
- Appliances: Many household appliances, such as toasters and coffee makers, use 16 gauge wire for their internal wiring.

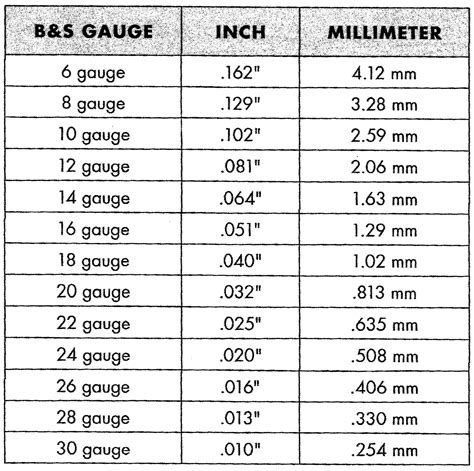

Specifications of 16 Gauge Wire
To ensure you are using the right wire for your project, it's important to understand the specifications of 16 gauge wire. Here are some key specifications:
| Specification | Value |
|---|---|
| Diameter | 1.29 mm |
| Current Rating | 10-13 Amps |
| Resistance | 12.9 ohms per 1000 feet |
| Voltage Drop | Low voltage drop suitable for short to medium runs |
These specifications make 16 gauge wire ideal for applications where the current requirements are moderate and the wire runs are not excessively long.
Installation Tips for 16 Gauge Wire
Proper installation of 16 gauge wire is essential for ensuring safety and reliability. Here are some tips to help you with the installation process:
- Choose the Right Connector: Use connectors that are compatible with 16 gauge wire to ensure a secure and reliable connection.
- Avoid Sharp Bends: When routing the wire, avoid sharp bends that can damage the insulation and compromise the wire's integrity.
- Secure the Wire: Use cable ties or clips to secure the wire along its route, preventing it from moving or becoming damaged.
- Inspect for Damage: Before installation, inspect the wire for any signs of damage, such as cuts or frayed insulation.
- Follow Safety Guidelines: Always follow safety guidelines and local electrical codes when installing electrical wiring.
🔧 Note: Always turn off the power supply before working with electrical wiring to prevent accidents.
Safety Considerations
Working with electrical wiring, including 16 gauge wire, requires careful attention to safety. Here are some important safety considerations to keep in mind:
- Use Proper Insulation: Ensure that the wire is properly insulated to prevent short circuits and electrical shocks.
- Avoid Overloading: Do not exceed the current rating of the wire to prevent overheating and potential fires.
- Grounding: Properly ground the electrical system to protect against electrical shocks and equipment damage.
- Regular Inspections: Regularly inspect the wiring for any signs of wear or damage and replace it if necessary.
⚠️ Note: If you are not experienced in electrical work, it is advisable to consult a professional electrician to ensure safety and compliance with local codes.
Common Mistakes to Avoid
When working with 16 gauge wire, there are several common mistakes that can compromise the safety and efficiency of your electrical system. Here are some mistakes to avoid:
- Using the Wrong Gauge: Ensure that you are using the correct gauge of wire for your application to avoid overloading and potential hazards.
- Improper Connections: Make sure that all connections are secure and properly insulated to prevent short circuits.
- Ignoring Local Codes: Always follow local electrical codes and regulations to ensure safety and compliance.
- Neglecting Maintenance: Regularly inspect and maintain your electrical wiring to prevent potential issues.
🛠️ Note: Proper planning and attention to detail can help you avoid these common mistakes and ensure a safe and efficient electrical system.
In summary, 16 gauge wire is a versatile and reliable choice for a variety of electrical applications. Understanding its specifications, uses, and installation tips can help you make informed decisions and ensure the safety and efficiency of your electrical system. By following safety guidelines and avoiding common mistakes, you can effectively use 16 gauge wire in your projects.
