Understanding the intricacies of electrical wiring is crucial for anyone involved in home improvement, electrical repairs, or DIY projects. One of the most common types of wiring encountered is the 14 2 wire, which is widely used in residential settings. This type of wiring consists of two insulated conductors and a bare copper ground wire, making it suitable for a variety of applications. In this post, we will delve into the specifics of 14 2 wire, its uses, installation guidelines, and safety considerations.
What is 14 2 Wire?
The 14 2 wire is a type of non-metallic sheathed cable (NM cable) that contains two insulated conductors and a bare copper ground wire. The “14” refers to the gauge of the wire, which indicates its thickness and current-carrying capacity. The “2” signifies the number of insulated conductors. This wiring is commonly used for 15-amp circuits and is suitable for most household electrical needs.
Components of 14 2 Wire
The 14 2 wire typically includes the following components:

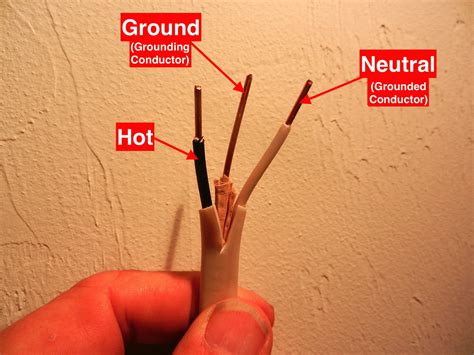

- Two Insulated Conductors: These are usually colored black and white, representing the hot and neutral wires, respectively.
- Bare Copper Ground Wire: This wire is used to ground the circuit, providing a safe path for electrical current in case of a short circuit.
- Non-Metallic Sheathing: The outer jacket protects the wires from physical damage and environmental factors.
Common Uses of 14 2 Wire
The 14 2 wire is versatile and can be used in various applications, including:
- Lighting circuits
- Outlet circuits
- Switches and receptacles
- Small appliances and devices
Its 15-amp rating makes it ideal for most residential electrical needs, ensuring safe and efficient power distribution.
Installation Guidelines for 14 2 Wire
Proper installation of 14 2 wire is essential for safety and functionality. Here are the steps to follow:
- Plan the Circuit: Determine the layout of your circuit, including the locations of outlets, switches, and lighting fixtures.
- Run the Wire: Install the 14 2 wire through the walls, ceilings, or floors, ensuring it is securely fastened and protected from damage.
- Connect to the Panel: Attach the wire to the circuit breaker in the electrical panel. The black wire connects to the breaker, the white wire to the neutral bus bar, and the bare ground wire to the ground bus bar.
- Wire the Devices: Connect the wire to outlets, switches, and lighting fixtures according to the manufacturer’s instructions. Ensure proper polarity and grounding.
- Test the Circuit: Once all connections are made, turn on the circuit breaker and test the circuit to ensure it is functioning correctly.
🔧 Note: Always turn off the power at the main circuit breaker before working on any electrical wiring to prevent the risk of electric shock.
Safety Considerations for 14 2 Wire
Working with electrical wiring requires caution and adherence to safety guidelines. Here are some important safety considerations for 14 2 wire:
- Use Proper Tools: Always use insulated tools designed for electrical work to minimize the risk of electric shock.
- Avoid Overloading: Ensure that the circuit is not overloaded by connecting too many devices or appliances. Overloading can cause overheating and potential fires.
- Proper Grounding: Always connect the bare ground wire to the ground bus bar in the electrical panel and to the grounding terminals in outlets and switches.
- Inspect for Damage: Regularly inspect the 14 2 wire for any signs of damage, such as frayed insulation or exposed conductors. Replace any damaged sections immediately.
Troubleshooting Common Issues with 14 2 Wire
Even with proper installation, issues can arise with 14 2 wire. Here are some common problems and their solutions:
- No Power: If there is no power at the outlets or switches, check the circuit breaker to ensure it is not tripped. Also, verify that the wire is properly connected to the breaker and neutral bus bar.
- Intermittent Power: Intermittent power issues can be caused by loose connections. Tighten all connections and ensure the wire is securely fastened.
- Overheating: Overheating can occur due to overloading or poor connections. Reduce the load on the circuit and check for any loose or corroded connections.
Comparing 14 2 Wire with Other Types of Wiring
Understanding the differences between 14 2 wire and other types of wiring can help you choose the right one for your project. Here is a comparison:
| Type of Wire | Gauge | Current Rating | Common Uses |
|---|---|---|---|
| 14 2 Wire | 14 AWG | 15 Amps | Lighting, outlets, switches |
| 12 2 Wire | 12 AWG | 20 Amps | Kitchen appliances, power tools |
| 10 2 Wire | 10 AWG | 30 Amps | Electric ranges, dryers |
Best Practices for Working with 14 2 Wire
To ensure the safe and efficient use of 14 2 wire, follow these best practices:
- Follow Local Codes: Always adhere to local electrical codes and regulations when installing or repairing wiring.
- Use Appropriate Connections: Use wire nuts or other approved connectors to secure wire connections. Avoid using tape or other makeshift solutions.
- Label Circuits: Clearly label each circuit in the electrical panel to easily identify and troubleshoot issues.
- Regular Maintenance: Periodically inspect and maintain your electrical wiring to ensure it remains in good condition.
In summary, the 14 2 wire is a fundamental component in residential electrical systems. Its versatility and reliability make it a popular choice for various applications. By understanding its components, proper installation techniques, and safety considerations, you can ensure a safe and efficient electrical setup in your home. Always prioritize safety and adhere to best practices when working with electrical wiring to prevent potential hazards and ensure long-lasting performance.
