Electrical wiring is a critical aspect of any construction or renovation project, and choosing the right gauge of wire is essential for ensuring safety and efficiency. Among the various wire gauges available, 12 gauge wire is one of the most commonly used, particularly in residential and commercial settings. This wire gauge offers a balance between conductivity and flexibility, making it suitable for a wide range of applications. In this post, we will delve into the specifics of 12 gauge wire, its uses, advantages, and best practices for installation.
Understanding Wire Gauge
Wire gauge refers to the thickness of the wire, which is measured using the American Wire Gauge (AWG) system. The lower the gauge number, the thicker the wire. 12 gauge wire is thicker than 14 gauge wire but thinner than 10 gauge wire. This makes it ideal for applications that require a moderate amount of current without the need for excessive thickness.
Applications of 12 Gauge Wire
12 gauge wire is versatile and can be used in various electrical applications. Some of the most common uses include:
- Lighting Circuits: 12 gauge wire is often used for lighting circuits in residential homes. It can handle the current required for multiple light fixtures and outlets.
- Appliance Circuits: Many household appliances, such as refrigerators, washing machines, and dryers, require 12 gauge wire to ensure they receive the necessary power.
- Outdoor Lighting: For outdoor lighting and power outlets, 12 gauge wire is a reliable choice due to its durability and ability to withstand outdoor conditions.
- Electrical Panels: In electrical panels, 12 gauge wire is used for branch circuits that supply power to various parts of a building.
Advantages of Using 12 Gauge Wire
There are several advantages to using 12 gauge wire in electrical installations:
- Conductivity: 12 gauge wire offers good conductivity, ensuring that electrical current flows efficiently without significant loss.
- Flexibility: Compared to thicker wires, 12 gauge wire is more flexible, making it easier to install in tight spaces and around corners.
- Durability: 12 gauge wire is durable and can withstand the rigors of installation and use, reducing the risk of damage or failure.
- Cost-Effective: While not the cheapest option, 12 gauge wire provides a good balance between cost and performance, making it a cost-effective choice for many applications.
Installation Best Practices
Proper installation of 12 gauge wire is crucial for ensuring safety and efficiency. Here are some best practices to follow:
- Use Appropriate Tools: Always use the right tools for the job, including wire strippers, crimpers, and screwdrivers. This ensures that the wire is properly stripped and connected.
- Follow Code Requirements: Adhere to local electrical codes and regulations when installing 12 gauge wire. This includes using the correct wire type (e.g., NM-B, THHN) and ensuring proper grounding.
- Avoid Overloading: Do not overload circuits with 12 gauge wire. The maximum current rating for 12 gauge wire is typically 20 amps, so ensure that the circuit breaker or fuse is appropriately sized.
- Proper Connections: Make sure all connections are secure and properly insulated. Use wire nuts or other approved connectors to join wires, and ensure that there are no loose or exposed wires.
🔧 Note: Always turn off the power at the circuit breaker before working on any electrical wiring to prevent the risk of electric shock.
Safety Considerations
Safety is paramount when working with electrical wiring. Here are some key safety considerations to keep in mind when using 12 gauge wire:
- Insulation: Ensure that 12 gauge wire is properly insulated to prevent short circuits and electrical hazards. Use wire with a suitable insulation rating for the intended application.
- Grounding: Proper grounding is essential for safety. Make sure that all circuits using 12 gauge wire are properly grounded to protect against electrical shocks.
- Avoid Overheating: Overheating can damage 12 gauge wire and pose a fire hazard. Ensure that wires are not overloaded and are properly ventilated to dissipate heat.
- Regular Inspections: Regularly inspect 12 gauge wire and electrical connections for signs of wear, damage, or corrosion. Replace any damaged wires or connectors promptly.
Common Mistakes to Avoid
When working with 12 gauge wire, it’s important to avoid common mistakes that can compromise safety and performance. Here are some pitfalls to watch out for:
- Incorrect Wire Size: Using the wrong size of wire can lead to overheating, short circuits, and other electrical hazards. Always use 12 gauge wire for applications that require it.
- Poor Connections: Loose or poorly made connections can cause arcing, overheating, and fire hazards. Ensure that all connections are secure and properly insulated.
- Ignoring Code Requirements: Failing to follow local electrical codes can result in unsafe installations and potential legal issues. Always adhere to code requirements when installing 12 gauge wire.
- Overloading Circuits: Overloading circuits with 12 gauge wire can lead to overheating and fire hazards. Ensure that circuits are properly sized and do not exceed the current rating of the wire.

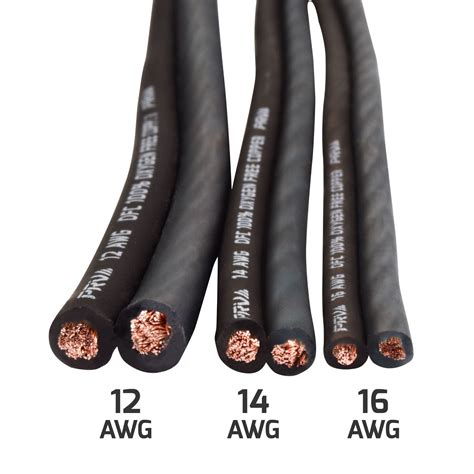

Comparing 12 Gauge Wire to Other Gauges
To better understand the advantages of 12 gauge wire, it’s helpful to compare it to other common wire gauges. Here is a comparison table:
| Wire Gauge | Current Rating (Amps) | Typical Uses | Advantages |
|---|---|---|---|
| 10 Gauge | 30 | Heavy-duty appliances, large motors | High current capacity, durable |
| 12 Gauge | 20 | Lighting circuits, appliances, outdoor lighting | Good conductivity, flexible, cost-effective |
| 14 Gauge | 15 | Lighting fixtures, small appliances | Lightweight, easy to install |
As shown in the table, 12 gauge wire offers a good balance between current capacity and flexibility, making it suitable for a wide range of applications. While 10 gauge wire can handle higher currents, it is less flexible and more expensive. On the other hand, 14 gauge wire is lighter and easier to install but has a lower current rating.
Conclusion
12 gauge wire is a versatile and reliable choice for many electrical applications. Its good conductivity, flexibility, and durability make it ideal for lighting circuits, appliance circuits, and outdoor lighting. By following best practices for installation and safety considerations, you can ensure that your electrical wiring is safe and efficient. Whether you are a professional electrician or a DIY enthusiast, understanding the benefits and proper use of 12 gauge wire is essential for successful electrical projects.
