Electrical wiring is a critical aspect of any construction or renovation project. Among the various types of wires available, 12 Gauge Electrical Wire stands out due to its versatility and reliability. This wire is commonly used in residential and commercial settings for a wide range of applications. Understanding the specifications, uses, and installation guidelines for 12 Gauge Electrical Wire can help ensure the safety and efficiency of your electrical system.
Understanding 12 Gauge Electrical Wire

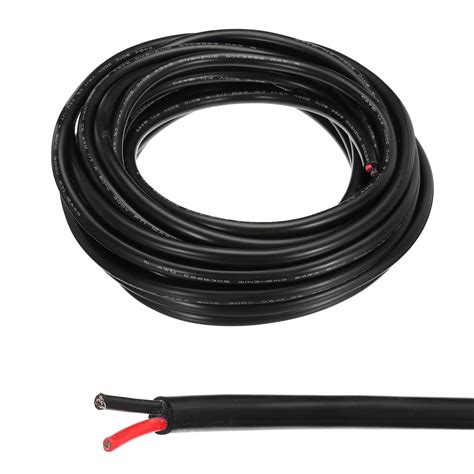

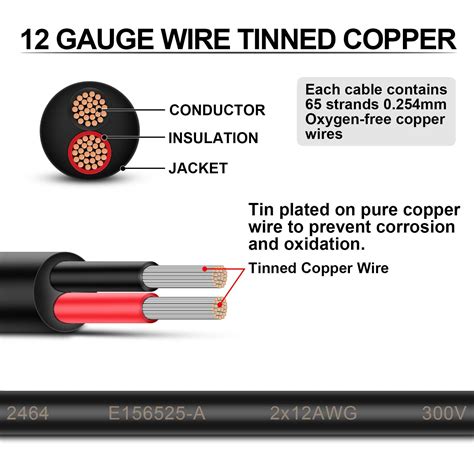

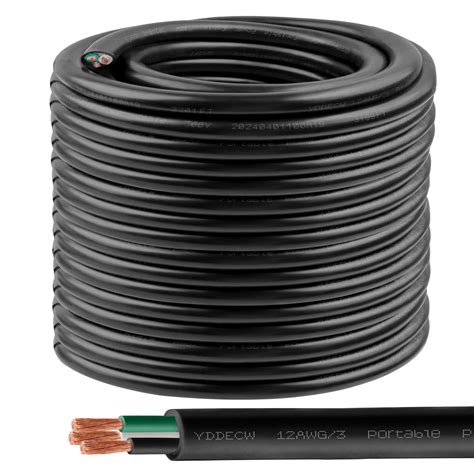

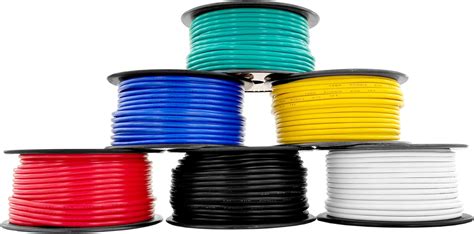

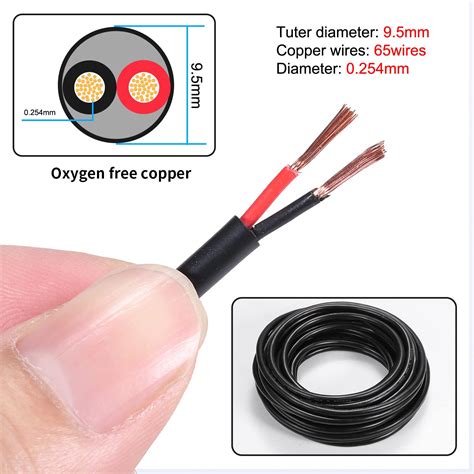

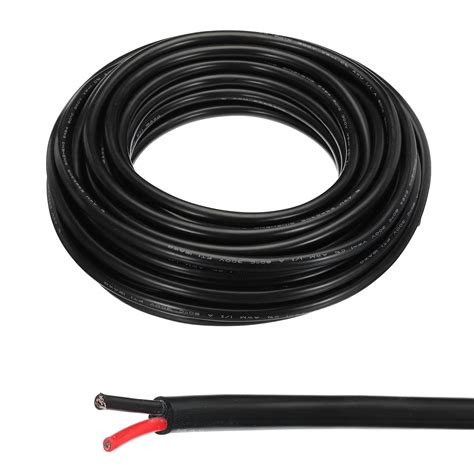

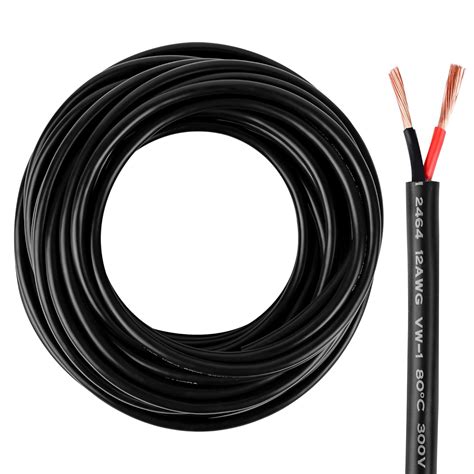

12 Gauge Electrical Wire is a type of electrical conductor with a diameter of 0.0808 inches. The gauge system used for electrical wires is based on the American Wire Gauge (AWG) standard, where a lower gauge number indicates a thicker wire. 12 Gauge Electrical Wire is thicker than 14-gauge wire but thinner than 10-gauge wire, making it suitable for medium-duty applications.
This wire is typically made of copper or aluminum, with copper being the more common choice due to its superior conductivity and durability. 12 Gauge Electrical Wire is available in various types, including:
- THHN (Thermoplastic High Heat-resistant Nylon-coated)
- THWN (Thermoplastic Heat and Water-resistant Nylon-coated)
- XHHW (Cross-linked Polyethylene High Heat-resistant)
- RMC (Rigid Metal Conduit)
Each type has specific properties that make it suitable for different environments and applications.
Applications of 12 Gauge Electrical Wire
12 Gauge Electrical Wire is widely used in both residential and commercial settings. Some of the most common applications include:
- Lighting Circuits: Ideal for powering lighting fixtures in homes and offices.
- Outlets and Switches: Suitable for wiring outlets and switches in living rooms, bedrooms, and kitchens.
- Appliances: Often used for connecting small to medium-sized appliances like refrigerators, microwaves, and washing machines.
- HVAC Systems: Commonly used in heating, ventilation, and air conditioning systems.
- Electrical Panels: Used for connecting electrical panels to various circuits within a building.
Due to its versatility, 12 Gauge Electrical Wire is a popular choice for both new construction and renovation projects.
Installation Guidelines for 12 Gauge Electrical Wire
Proper installation of 12 Gauge Electrical Wire is crucial for ensuring safety and functionality. Here are the key steps to follow:
Materials Needed
- 12 Gauge Electrical Wire: Ensure you have the correct type and length for your project.
- Wire Strippers: For stripping the insulation from the wire.
- Crimping Tool: For attaching connectors to the wire.
- Electrical Tape: For insulating exposed wire.
- Wire Nuts: For connecting wires securely.
- Safety Gear: Including gloves and safety glasses.
Step-by-Step Installation
1. Plan Your Route: Determine the path the wire will take from the power source to the destination. Ensure the route is clear of obstacles and follows building codes.
2. Measure and Cut: Measure the required length of 12 Gauge Electrical Wire and cut it using a wire cutter. Allow for a few extra inches to accommodate connections.
3. Strip the Wire: Use wire strippers to remove about ½ inch of insulation from both ends of the wire. Be careful not to nick the conductor.
4. Connect the Wire: Attach the wire to the appropriate terminal or connector. Use wire nuts to secure the connection and twist the wires together tightly.
5. Insulate the Connection: Wrap electrical tape around the connection to insulate it and prevent short circuits.
6. Test the Connection: Use a multimeter to test the continuity of the wire and ensure the connection is secure.
🔧 Note: Always turn off the power at the circuit breaker before working with electrical wires to avoid the risk of electric shock.
Safety Considerations
Working with electrical wires, including 12 Gauge Electrical Wire, requires adherence to safety protocols. Here are some important safety considerations:
- Turn Off Power: Always turn off the power at the circuit breaker before starting any electrical work.
- Use Proper Tools: Ensure you have the right tools for the job, including insulated gloves and safety glasses.
- Avoid Overloading: Do not overload circuits with too many devices or appliances, as this can cause overheating and fires.
- Inspect Wires Regularly: Regularly inspect wires for signs of wear, damage, or corrosion. Replace any damaged wires immediately.
- Follow Building Codes: Adhere to local building codes and regulations to ensure the safety and legality of your electrical work.
By following these safety guidelines, you can minimize the risk of electrical hazards and ensure the longevity of your electrical system.
Common Mistakes to Avoid
When working with 12 Gauge Electrical Wire, it's essential to avoid common mistakes that can compromise safety and functionality. Here are some pitfalls to watch out for:
- Incorrect Wire Gauge: Using the wrong gauge of wire can lead to overheating and potential fires. Always use the correct gauge for your application.
- Poor Connections: Loose or improperly secured connections can cause arcing and short circuits. Ensure all connections are tight and secure.
- Inadequate Insulation: Insufficient insulation can expose live wires and increase the risk of electric shock. Always use appropriate insulation and electrical tape.
- Ignoring Building Codes: Failing to follow local building codes can result in fines and safety hazards. Always comply with regulations and obtain necessary permits.
By being aware of these common mistakes, you can ensure a safe and efficient installation of 12 Gauge Electrical Wire.
Maintenance Tips for 12 Gauge Electrical Wire
Maintaining your electrical system is crucial for its longevity and safety. Here are some maintenance tips for 12 Gauge Electrical Wire:
- Regular Inspections: Conduct regular inspections of your wiring to check for signs of wear, damage, or corrosion.
- Clean Connections: Keep connections clean and free of debris to ensure proper conductivity.
- Replace Damaged Wires: Immediately replace any wires that show signs of damage or wear.
- Avoid Overloading: Do not overload circuits with too many devices or appliances.
- Use Surge Protectors: Install surge protectors to safeguard your electrical system from power surges.
By following these maintenance tips, you can extend the lifespan of your 12 Gauge Electrical Wire and ensure the safety of your electrical system.
In conclusion, 12 Gauge Electrical Wire is a versatile and reliable choice for a wide range of electrical applications. Understanding its specifications, proper installation techniques, and safety considerations can help ensure the efficiency and safety of your electrical system. Regular maintenance and adherence to building codes are essential for the longevity and performance of your wiring. By following these guidelines, you can make informed decisions about using 12 Gauge Electrical Wire in your projects and ensure a safe and functional electrical system.
