When it comes to electrical wiring, choosing the right gauge of wire is crucial for ensuring safety and efficiency. One of the most commonly used wire gauges is the 12 AWG wire. This wire is versatile and suitable for a wide range of applications, from residential wiring to automotive and marine use. Understanding the specifications, applications, and installation tips for 12 AWG wire can help you make informed decisions for your electrical projects.
Understanding Wire Gauge
Wire gauge refers to the diameter of the wire, which determines its current-carrying capacity. The American Wire Gauge (AWG) system is widely used to standardize wire sizes. The lower the gauge number, the thicker the wire. 12 AWG wire is thicker than 14 AWG but thinner than 10 AWG, making it a middle-ground option for many electrical needs.

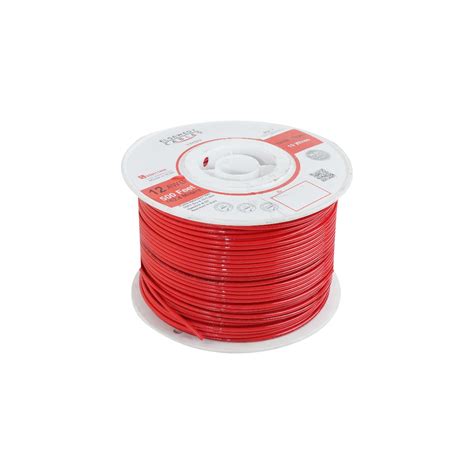

Specifications of 12 AWG Wire
The specifications of 12 AWG wire include its diameter, current-carrying capacity, and insulation type. Here are the key specifications:
- Diameter: Approximately 2.05 mm (0.081 inches)
- Current-Carrying Capacity: Typically rated for 20 amperes in residential wiring

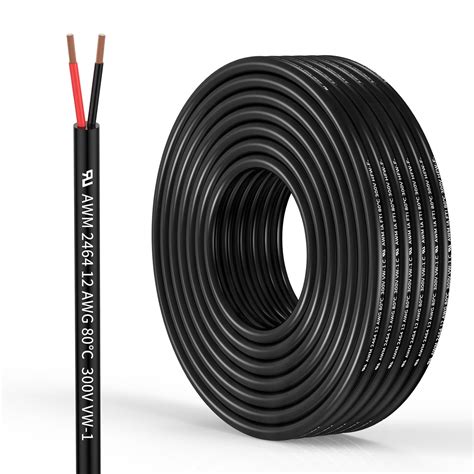

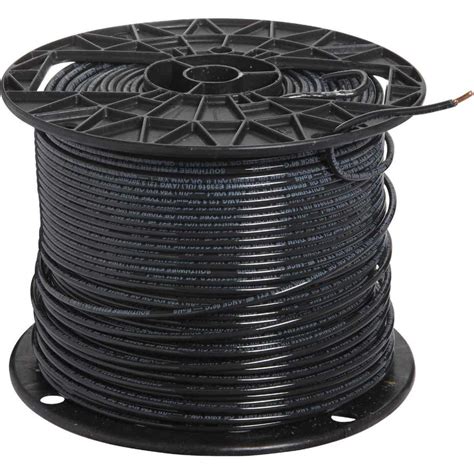

- Insulation Types: Commonly available in PVC, THHN, and XHHW insulation
Applications of 12 AWG Wire
12 AWG wire is used in various applications due to its balanced current-carrying capacity and flexibility. Some common uses include:
- Residential Wiring: Often used for lighting circuits, outlets, and small appliances

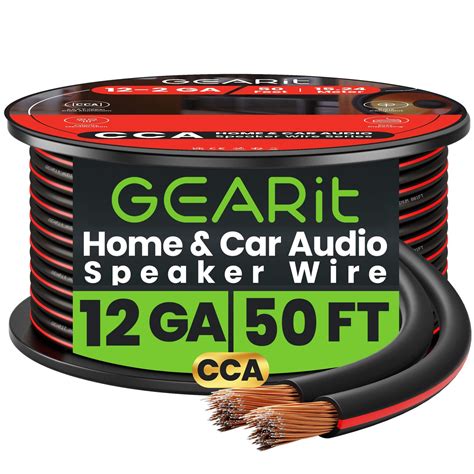

- Automotive Wiring: Suitable for high-current applications like starter motors and alternators
- Marine Wiring: Ideal for boat electrical systems due to its resistance to corrosion
- Industrial Applications: Used in control panels and machinery
Installation Tips for 12 AWG Wire
Proper installation of 12 AWG wire is essential for safety and performance. Here are some tips to ensure a successful installation:
- Choose the Right Connector: Use connectors and terminals that are rated for 12 AWG wire to ensure a secure connection.
- Avoid Sharp Bends: 12 AWG wire can be bent, but avoid sharp bends that can damage the insulation or reduce conductivity.
- Use Proper Tools: Use wire strippers, crimpers, and other tools designed for 12 AWG wire to avoid damaging the wire.
- Secure Connections: Ensure all connections are tight and secure to prevent loose wires, which can cause overheating and fires.
🔧 Note: Always follow local electrical codes and regulations when installing 12 AWG wire to ensure compliance and safety.
Safety Considerations
Safety is paramount when working with electrical wiring. Here are some key safety considerations for 12 AWG wire:
- Insulation Quality: Ensure the insulation is intact and free from cracks or damage.
- Overloading: Avoid overloading the circuit by exceeding the current-carrying capacity of 12 AWG wire.
- Proper Grounding: Always ground the circuit to prevent electrical shocks and fires.
- Avoid Water Exposure: Keep 12 AWG wire away from water and moisture to prevent short circuits.
Common Mistakes to Avoid
When working with 12 AWG wire, it’s important to avoid common mistakes that can compromise safety and performance. Here are some pitfalls to watch out for:
- Incorrect Wire Gauge: Using the wrong gauge of wire can lead to overheating and fires.
- Poor Connections: Loose or poorly made connections can cause arcing and overheating.
- Ignoring Local Codes: Failing to follow local electrical codes can result in fines and safety hazards.
- Overloading Circuits: Exceeding the current-carrying capacity of 12 AWG wire can cause overheating and fires.
⚠️ Note: Always double-check your work and consult a professional if you are unsure about any aspect of the installation.
Comparing 12 AWG Wire to Other Gauges
To better understand the suitability of 12 AWG wire for your project, it’s helpful to compare it with other common wire gauges. Here is a comparison table:
| Wire Gauge | Diameter (mm) | Current-Carrying Capacity (Amperes) | Common Uses |
|---|---|---|---|
| 10 AWG | 2.59 | 30 | Heavy-duty appliances, subpanels |
| 12 AWG | 2.05 | 20 | Lighting circuits, outlets, small appliances |
| 14 AWG | 1.63 | 15 | Lighting fixtures, low-power outlets |
| 16 AWG | 1.29 | 10 | Low-voltage applications, control circuits |
Conclusion
12 AWG wire is a versatile and reliable choice for a wide range of electrical applications. Its balanced current-carrying capacity and flexibility make it suitable for residential, automotive, marine, and industrial uses. By understanding the specifications, applications, and installation tips for 12 AWG wire, you can ensure safe and efficient electrical wiring in your projects. Always prioritize safety and follow local electrical codes to avoid potential hazards. With the right knowledge and precautions, 12 AWG wire can be a valuable component in your electrical toolkit.
