Electrical wiring is a critical aspect of any construction or renovation project. One of the most commonly used types of electrical cables is 12 2 Romex. This cable is widely preferred for its durability, flexibility, and ease of installation. Understanding the specifications, applications, and installation procedures of 12 2 Romex can help ensure a safe and efficient electrical system.
What is 12 2 Romex?

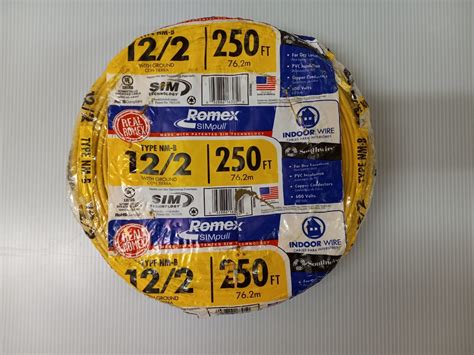

12 2 Romex is a type of non-metallic sheathed cable (NM cable) that consists of two 12-gauge copper conductors and a bare copper ground wire. The "12" refers to the gauge of the conductors, which indicates their thickness and current-carrying capacity. The "2" signifies the number of insulated conductors, and "Romex" is a brand name commonly used to refer to this type of cable.
Specifications of 12 2 Romex
Understanding the specifications of 12 2 Romex is crucial for selecting the right cable for your project. Here are the key specifications:
- Conductor Gauge: 12 AWG (American Wire Gauge)
- Number of Conductors: 2 insulated conductors + 1 bare ground wire
- Conductor Material: Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Sheath Material: PVC
- Voltage Rating: 600 volts
- Temperature Rating: 60°C (140°F)
- Amperage Rating: 20 amps
Applications of 12 2 Romex
12 2 Romex is versatile and can be used in a variety of applications. Some common uses include:
- Residential wiring for lighting circuits
- Outlet circuits in homes and offices
- Appliance circuits
- General-purpose wiring in dry locations
It is important to note that 12 2 Romex should not be used in wet locations or where it may be exposed to physical damage. Always consult local electrical codes and regulations to ensure compliance.
Installation Procedures for 12 2 Romex
Installing 12 2 Romex requires careful planning and adherence to safety guidelines. Here are the steps to properly install 12 2 Romex:
Materials Needed
- 12 2 Romex cable
- Electrical boxes
- Wire strippers
- Wire nuts
- Screwdriver
- Cable staples
- Fish tape (if needed)
Step-by-Step Installation
1. Plan the Route: Determine the path the cable will take from the power source to the outlet or switch. Ensure the route is free of obstacles and complies with local codes.
2. Measure and Cut the Cable: Measure the length of cable needed and cut it using a cable cutter. Leave enough slack to make connections and allow for any adjustments.
3. Strip the Cable: Use wire strippers to remove about ½ inch of the outer jacket from both ends of the cable. Be careful not to nick the insulation of the conductors.
4. Separate the Conductors: Separate the two insulated conductors and the bare ground wire. Strip about ½ inch of insulation from each conductor.
5. Install Cable Staples: Secure the cable to the studs or joists using cable staples. Staples should be placed every 12 inches along the cable run and within 8 inches of boxes and fittings.
6. Connect to Electrical Boxes: Run the cable into the electrical boxes and secure it with cable clamps. Ensure the cable is properly supported and not under tension.
7. Make Connections: Connect the conductors to the appropriate terminals in the outlet or switch. The black wire is typically the hot wire, the white wire is the neutral wire, and the bare wire is the ground wire. Use wire nuts to secure the connections.
8. Test the Circuit: Before closing the electrical box, use a non-contact voltage tester to ensure the circuit is live and functioning correctly.
9. Secure the Box: Once the connections are verified, secure the electrical box to the wall or ceiling. Install the outlet or switch cover plate.
🔧 Note: Always turn off the power at the circuit breaker before working on any electrical wiring. Use appropriate personal protective equipment (PPE) and follow all safety guidelines.
Safety Considerations
Working with electrical wiring, including 12 2 Romex, requires strict adherence to safety protocols. Here are some key safety considerations:
- Always turn off the power at the circuit breaker before starting any work.
- Use insulated tools to avoid accidental contact with live wires.
- Ensure all connections are secure and properly insulated.
- Avoid overloading circuits by exceeding the amperage rating of the cable.
- Keep the work area clean and well-lit to prevent accidents.
Common Mistakes to Avoid
When installing 12 2 Romex, it's essential to avoid common mistakes that can compromise safety and functionality. Here are some pitfalls to watch out for:
- Incorrect Wire Gauge: Using the wrong gauge of wire can lead to overheating and potential fires. Always use the correct gauge for the intended application.
- Improper Stripping: Stripping too much or too little insulation can result in poor connections or short circuits. Follow the recommended stripping lengths.
- Loose Connections: Loose connections can cause arcing and overheating. Ensure all connections are tight and secure.
- Overloading Circuits: Exceeding the amperage rating of the cable can cause overheating and potential fires. Always stay within the rated capacity.
- Inadequate Support: Failing to secure the cable properly can lead to damage and potential hazards. Use cable staples and supports as needed.
Troubleshooting Common Issues
Even with careful installation, issues can arise with 12 2 Romex. Here are some common problems and their solutions:
| Issue | Solution |
|---|---|
| No Power at Outlet | Check for loose connections, ensure the circuit breaker is on, and verify the cable is properly connected. |
| Flickering Lights | Inspect for loose connections, ensure the cable is securely fastened, and check for any damaged wires. |
| Overheating | Verify the cable is not overloaded, ensure proper ventilation, and check for any short circuits. |
| Ground Fault | Inspect for damaged insulation, ensure the ground wire is properly connected, and check for any moisture ingress. |
If you encounter persistent issues, it may be necessary to consult a licensed electrician to diagnose and resolve the problem.
🛠️ Note: Regularly inspect your electrical wiring for signs of wear or damage. Address any issues promptly to maintain a safe and reliable electrical system.
In conclusion, 12 2 Romex is a versatile and reliable choice for electrical wiring in residential and commercial settings. Understanding its specifications, applications, and installation procedures is essential for ensuring a safe and efficient electrical system. By following best practices and adhering to safety guidelines, you can successfully install 12 2 Romex and enjoy a reliable power supply for your needs.
