1000 Ft Romex 12/2

Electrical wiring is a critical aspect of any construction or renovation project. One of the most commonly used wires in residential and commercial settings is the 1000 Ft Romex 12/2. This type of wire is essential for ensuring safe and efficient electrical connections. Understanding the specifications, applications, and installation procedures of 1000 Ft Romex 12/2 can help you make informed decisions and ensure the success of your electrical projects.

Table of Contents

Understanding 1000 Ft Romex 12/2

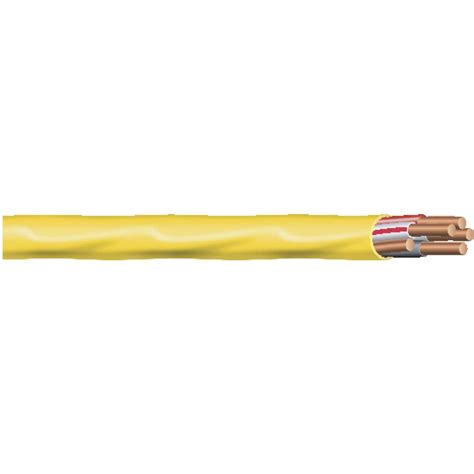

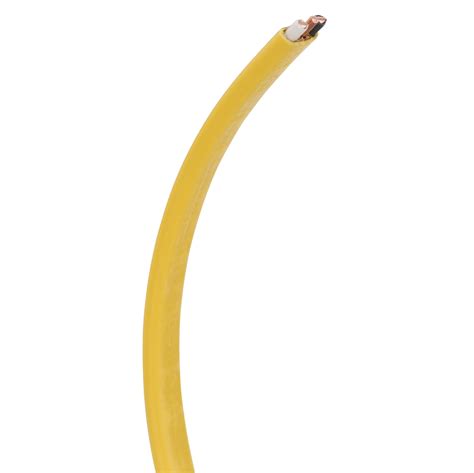

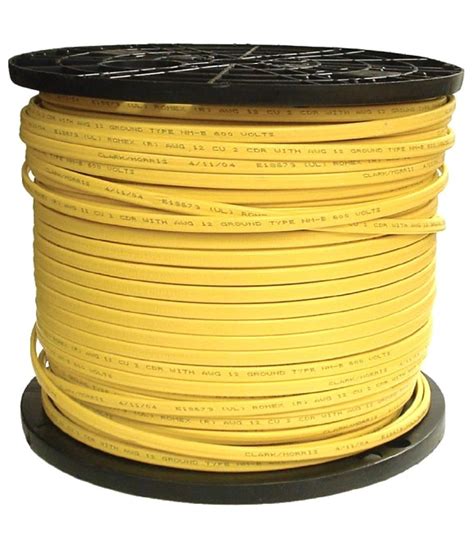

The 1000 Ft Romex 12/2 is a type of non-metallic sheathed cable, often referred to as NM-B cable. It consists of two insulated conductors and a bare copper ground wire, all enclosed in a non-metallic jacket. The "12/2" designation indicates that the cable has two 12-gauge conductors, which are suitable for circuits with a maximum current of 20 amperes. The "1000 Ft" refers to the length of the cable, making it ideal for longer runs in residential and commercial buildings.

Key Features of 1000 Ft Romex 12/2

The 1000 Ft Romex 12/2 offers several key features that make it a popular choice for electrical wiring:

Durability: The non-metallic jacket provides protection against physical damage and moisture, ensuring long-lasting performance.
Flexibility: The cable is flexible enough to be easily routed through walls, ceilings, and other confined spaces.
Safety: The insulated conductors and ground wire help prevent electrical shocks and short circuits, enhancing overall safety.
Ease of Installation: The cable is designed for easy installation, with color-coded conductors that simplify the wiring process.

Applications of 1000 Ft Romex 12/2

The 1000 Ft Romex 12/2 is versatile and can be used in a variety of applications, including:

Residential Wiring: Ideal for wiring new homes, renovations, and additions. It is commonly used for lighting circuits, outlet circuits, and appliance circuits.
Commercial Wiring: Suitable for offices, retail spaces, and other commercial buildings where reliable electrical connections are essential.
Industrial Wiring: Can be used in industrial settings for powering machinery and equipment, although it may require additional protection in harsh environments.

Installation Guide for 1000 Ft Romex 12/2

Installing 1000 Ft Romex 12/2 requires careful planning and adherence to electrical codes. Here is a step-by-step guide to help you through the process:

Materials Needed

1000 Ft Romex 12/2 cable
Wire strippers
Cable clamps
Electrical tape
Wire nuts
Safety glasses
Gloves

Step-by-Step Installation

1. Plan the Route: Determine the path the cable will take from the power source to the outlets or fixtures. Ensure the route is free of obstacles and follows the building's layout.

2. Measure and Cut: Measure the required length of the 1000 Ft Romex 12/2 cable and cut it using a cable cutter. Ensure you have enough slack for connections and future adjustments.

3. Strip the Cable: Use wire strippers to remove about 6 inches of the outer jacket from both ends of the cable. Be careful not to damage the insulated conductors or the ground wire.

4. Strip the Conductors: Strip about ½ inch of insulation from the ends of the black (hot) and white (neutral) conductors. The ground wire does not need to be stripped.

5. Connect the Wires: Connect the black wire to the black wire of the outlet or fixture, the white wire to the white wire, and the bare copper ground wire to the green ground screw. Use wire nuts to secure the connections.

6. Secure the Cable: Use cable clamps to secure the cable to the studs or joists at regular intervals. This helps prevent the cable from sagging or becoming damaged.

7. Test the Circuit: Once all connections are made, turn on the power and test the circuit to ensure it is functioning correctly. Use a voltage tester to verify that the outlets and fixtures are receiving power.

🔧 Note: Always follow local electrical codes and regulations when installing electrical wiring. If you are unsure about any aspect of the installation, consult a licensed electrician.

Safety Precautions

Working with electrical wiring can be dangerous if proper safety precautions are not followed. Here are some important safety tips to keep in mind:

Turn Off Power: Always turn off the power at the circuit breaker before working on any electrical wiring.
Use Protective Gear: Wear safety glasses and gloves to protect yourself from electrical shocks and physical injuries.
Avoid Overloading: Do not overload circuits by connecting too many devices to a single outlet or circuit.
Inspect Wires: Regularly inspect wires for signs of damage, such as frayed insulation or exposed conductors. Replace damaged wires immediately.

Common Mistakes to Avoid

When installing 1000 Ft Romex 12/2, it's important to avoid common mistakes that can compromise the safety and efficiency of your electrical system. Here are some pitfalls to watch out for:

Incorrect Wire Gauge: Using the wrong wire gauge can lead to overheating and potential fires. Ensure you are using 12-gauge wire for 20-amp circuits.
Improper Connections: Loose or improperly secured connections can cause arcing and short circuits. Always use wire nuts and secure connections tightly.
Inadequate Support: Failing to secure the cable properly can result in sagging or damage. Use cable clamps to support the cable at regular intervals.
Ignoring Codes: Not following local electrical codes can lead to fines and safety hazards. Always adhere to the relevant codes and regulations.

🛑 Note: If you encounter any issues or are unsure about any aspect of the installation, it is best to consult a professional electrician.

Maintenance Tips

Regular maintenance of your electrical wiring can help prevent issues and ensure the longevity of your system. Here are some maintenance tips for 1000 Ft Romex 12/2:

Inspect Regularly: Periodically inspect the cable for signs of wear, damage, or corrosion. Replace any damaged sections immediately.
Keep Connections Tight: Ensure that all wire connections are secure and tight. Loose connections can cause arcing and short circuits.
Avoid Physical Damage: Protect the cable from physical damage by routing it through protected areas and using cable clamps to secure it.
Check for Overloading: Monitor the circuits for signs of overloading, such as overheating or tripped breakers. Redistribute the load if necessary.

By following these maintenance tips, you can ensure that your 1000 Ft Romex 12/2 cable remains in good condition and continues to provide reliable electrical connections.

Conclusion

In summary, the 1000 Ft Romex ¹²⁄₂ is a versatile and reliable choice for electrical wiring in residential, commercial, and industrial settings. Its durability, flexibility, and safety features make it an excellent option for a wide range of applications. By understanding its specifications, following proper installation procedures, and adhering to safety precautions, you can ensure the success of your electrical projects. Regular maintenance and inspection will help prolong the life of your wiring and prevent potential issues, ensuring a safe and efficient electrical system.
