10 Lead Ecg Placement

Electrocardiogram (ECG) is a crucial diagnostic tool in cardiology, providing valuable insights into the heart's electrical activity. Proper 10 lead ECG placement is essential for accurate readings and reliable diagnoses. This guide will walk you through the steps and best practices for placing the 10 leads correctly, ensuring you get the most out of your ECG readings.

Table of Contents

Understanding the 10 Lead ECG System

The 10 lead ECG system consists of four limb leads and six chest leads. The limb leads are placed on the extremities, while the chest leads are positioned on specific points on the chest. Each lead provides a different view of the heart’s electrical activity, allowing for a comprehensive assessment.

Preparing for 10 Lead ECG Placement

Before placing the leads, ensure the patient is comfortable and the environment is conducive to accurate readings. Follow these steps to prepare:

Explain the procedure to the patient to alleviate any anxiety.
Ensure the patient is lying down in a supine position.
Clean the skin areas where the electrodes will be placed to remove any oils or dirt that could interfere with the signal.
Shave any hairy areas if necessary to ensure good contact between the electrodes and the skin.

Placing the Limb Leads

The limb leads are labeled as Right Arm (RA), Left Arm (LA), Right Leg (RL), and Left Leg (LL). These leads are placed on the extremities as follows:

Right Arm (RA): Place the electrode on the right shoulder or upper arm.
Left Arm (LA): Place the electrode on the left shoulder or upper arm.
Right Leg (RL): Place the electrode on the right lower abdomen or thigh.
Left Leg (LL): Place the electrode on the left lower abdomen or thigh.

Ensure that the electrodes are securely attached and that there is good skin contact to avoid artifacts in the reading.

Placing the Chest Leads

The chest leads, labeled V1 through V6, are placed on specific points on the chest. Proper placement is crucial for accurate readings. Follow these steps:

V1: Place the electrode in the fourth intercostal space, just to the right of the sternum.
V2: Place the electrode in the fourth intercostal space, just to the left of the sternum.
V3: Place the electrode midway between V2 and V4.
V4: Place the electrode in the fifth intercostal space, in the midclavicular line.
V5: Place the electrode horizontally aligned with V4, in the anterior axillary line.
V6: Place the electrode horizontally aligned with V4 and V5, in the midaxillary line.

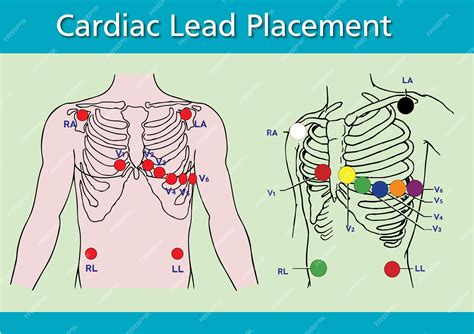

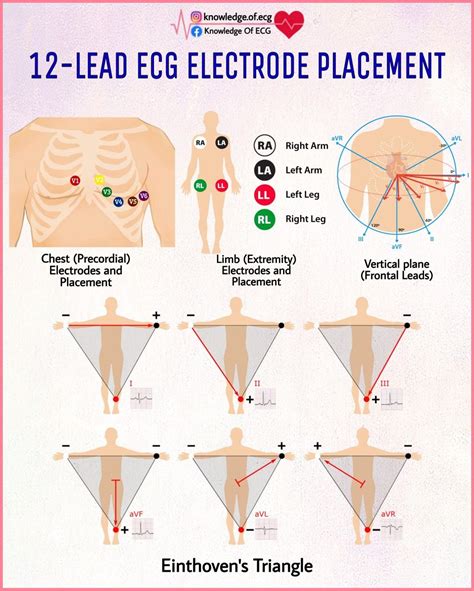

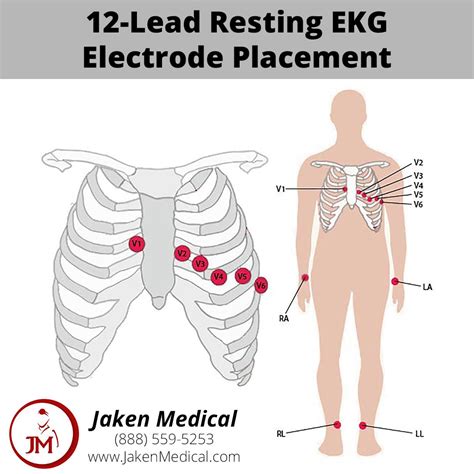

Use the following image as a reference for the correct placement of the chest leads:

Verifying Lead Placement

After placing all the leads, it is essential to verify their positions to ensure accurate readings. Follow these steps:

Check each electrode to ensure it is securely attached and making good contact with the skin.
Inspect the wires to ensure they are correctly connected to the ECG machine.
Observe the ECG tracing on the monitor to ensure there are no artifacts or interference.
If necessary, adjust the electrodes or wires to improve the signal quality.

🔍 Note: Proper lead placement is crucial for accurate ECG readings. Double-check each lead to ensure it is correctly positioned.

Common Mistakes to Avoid

Even with careful preparation, mistakes can occur during 10 lead ECG placement. Here are some common errors to avoid:

Poor Skin Contact: Ensure the skin is clean and dry before placing the electrodes. Avoid placing electrodes over bony prominences or areas with excessive hair.
Incorrect Lead Placement: Double-check the placement of each lead to ensure it is in the correct position. Refer to the diagram if necessary.
Loose Electrodes: Securely attach each electrode to prevent it from falling off during the procedure.
Interference: Minimize electrical interference by keeping the patient away from electronic devices and ensuring the room is quiet.

Interpreting the ECG Results

Once the leads are correctly placed, the ECG machine will generate a tracing that represents the heart’s electrical activity. Interpreting the results requires a thorough understanding of ECG waveforms and patterns. Key components to focus on include:

P Wave: Represents atrial depolarization.
QRS Complex: Represents ventricular depolarization.
T Wave: Represents ventricular repolarization.
ST Segment: The period between the end of the QRS complex and the beginning of the T wave.

Abnormalities in these waveforms can indicate various cardiac conditions, such as arrhythmias, ischemia, or infarction. Consult with a healthcare professional for a detailed interpretation of the ECG results.

Maintaining Equipment and Supplies

Proper maintenance of ECG equipment and supplies is essential for accurate and reliable readings. Follow these guidelines:

Cleanliness: Regularly clean the electrodes and wires to remove any dirt or residue.
Storage: Store the ECG machine and supplies in a clean, dry environment to prevent damage.
Calibration: Periodically calibrate the ECG machine to ensure it is functioning correctly.
Replacement: Replace any damaged or worn-out electrodes and wires promptly.

Training and Certification

Proper training and certification are crucial for healthcare professionals performing 10 lead ECG placement. Ensure that you have the necessary skills and knowledge to perform the procedure accurately. Consider the following steps:

Education: Complete a comprehensive training program that covers ECG theory, lead placement, and interpretation.
Practice: Gain hands-on experience by practicing on mannequins or under the supervision of an experienced professional.
Certification: Obtain certification from a recognized organization to demonstrate your competency in ECG procedures.
Continuing Education: Stay up-to-date with the latest advancements and best practices in ECG technology and interpretation.

Special Considerations

Certain patient populations may require special considerations during 10 lead ECG placement. Here are some key points to keep in mind:

Pediatric Patients: Use smaller electrodes and adjust the lead placement accordingly to accommodate the smaller size of the child’s body.
Obese Patients: Ensure good skin contact by cleaning the skin thoroughly and using additional electrodes if necessary.
Patients with Skin Conditions: Be cautious when placing electrodes on areas with skin conditions, such as eczema or psoriasis, as they may be more sensitive.
Patients with Pacemakers: Follow specific guidelines for lead placement to avoid interference with the pacemaker.

Troubleshooting Common Issues

Even with careful preparation, issues can arise during 10 lead ECG placement. Here are some common problems and their solutions:

Issue	Solution
Poor Signal Quality	Check for loose electrodes, poor skin contact, or interference from electronic devices.
Artifacts in the Tracing	Ensure the patient is relaxed and minimize movement. Check for loose electrodes or interference.
Incorrect Lead Placement	Double-check the placement of each lead and refer to the diagram if necessary.
Electrode Falling Off	Securely attach the electrodes and ensure good skin contact.

By following these troubleshooting steps, you can quickly identify and resolve common issues, ensuring accurate and reliable ECG readings.

In summary, proper 10 lead ECG placement is essential for accurate and reliable ECG readings. By following the steps outlined in this guide, you can ensure that the leads are correctly positioned, the signal quality is optimal, and the results are interpretable. Regular training, maintenance of equipment, and attention to special considerations will further enhance the accuracy and reliability of your ECG procedures. With careful preparation and attention to detail, you can provide valuable diagnostic information to support patient care.
