Electrical wiring is a critical aspect of any construction or renovation project. One of the most commonly used types of electrical wiring is 10 2 Romex. This type of wiring is essential for ensuring safe and efficient electrical distribution in residential and commercial settings. Understanding the specifications, applications, and installation guidelines for 10 2 Romex is crucial for both professionals and DIY enthusiasts.
What is 10 2 Romex?

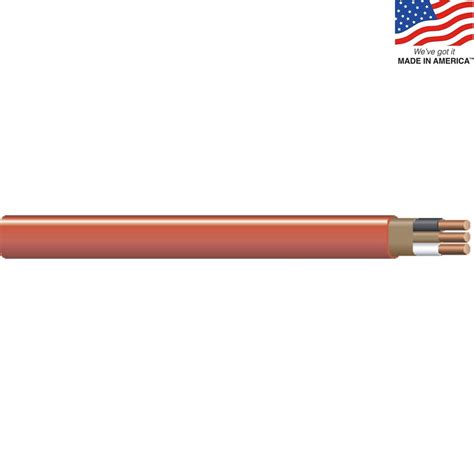

10 2 Romex is a type of non-metallic sheathed cable (NM cable) that consists of two insulated conductors and a bare copper ground wire. The "10" refers to the American Wire Gauge (AWG) size of the conductors, which is 10 gauge, and the "2" indicates that there are two insulated conductors. This wiring is commonly used for circuits that require a higher current capacity, such as those powering large appliances, HVAC systems, and other high-demand electrical devices.
Specifications of 10 2 Romex
The specifications of 10 2 Romex include:
- Conductor Size: 10 AWG
- Number of Conductors: 2 insulated conductors and 1 bare copper ground wire
- Insulation: Typically PVC (Polyvinyl Chloride)
- Sheathing: Non-metallic sheathing
- Voltage Rating: 600 volts
- Temperature Rating: 60°C (140°F) for dry locations, 75°C (167°F) for wet locations
Applications of 10 2 Romex
10 2 Romex is versatile and can be used in various applications, including:
- Powering large appliances such as electric ranges, dryers, and water heaters
- Supplying power to HVAC systems, including air conditioners and heat pumps
- Wiring for workshops and garages where heavy-duty tools are used
- Electrical distribution in commercial settings, such as offices and retail spaces
Installation Guidelines for 10 2 Romex
Proper installation of 10 2 Romex is essential for ensuring safety and compliance with electrical codes. Here are the key steps and guidelines for installing 10 2 Romex:
Materials Needed
- 10 2 Romex cable
- Electrical boxes
- Wire strippers
- Crimping tool
- Screwdriver
- Cable ties or staples
- Electrical tape
Step-by-Step Installation
1. Plan the Route: Determine the path the cable will take from the power source to the destination. Ensure the route is free of obstacles and follows the shortest possible path.
2. Measure and Cut the Cable: Measure the length of cable needed and cut it to size using a cable cutter. Ensure you leave enough slack for connections and bends.
3. Strip the Cable: Use wire strippers to remove about 6 inches of the outer sheathing from both ends of the cable. Be careful not to damage the insulated conductors or the ground wire.
4. Strip the Conductors: Strip about ½ inch of insulation from the ends of each conductor and the ground wire. This will expose the bare copper for making connections.
5. Connect to the Electrical Box: Attach the cable to the electrical box using cable ties or staples. Ensure the cable is securely fastened and that there is no strain on the connections.
6. Make the Connections: Connect the stripped conductors to the appropriate terminals in the electrical box. The black wire is typically the hot wire, the white wire is the neutral wire, and the bare copper wire is the ground wire. Use wire nuts to secure the connections and twist them tightly.
7. Secure the Connections: Wrap electrical tape around the wire nuts to provide additional insulation and security. Ensure all connections are tight and secure.
8. Test the Circuit: Before closing the electrical box, use a voltage tester to ensure the circuit is functioning correctly. This step is crucial for safety and to verify that the wiring is properly connected.
🔧 Note: Always turn off the power at the circuit breaker before working on any electrical wiring. Use a non-contact voltage tester to ensure the circuit is dead.
Safety Precautions
When working with 10 2 Romex or any electrical wiring, safety should always be the top priority. Here are some important safety precautions to keep in mind:
- Always turn off the power at the circuit breaker before starting any electrical work.
- Use insulated tools to avoid accidental contact with live wires.
- Wear appropriate personal protective equipment (PPE), including safety glasses and gloves.
- Ensure all connections are tight and secure to prevent loose wires.
- Follow local electrical codes and regulations to ensure compliance and safety.
Common Mistakes to Avoid
Even experienced electricians can make mistakes when working with electrical wiring. Here are some common mistakes to avoid when installing 10 2 Romex:
- Overloading the Circuit: Ensure the circuit is not overloaded by connecting too many high-demand devices. This can cause overheating and potential fires.
- Improper Connections: Make sure all connections are tight and secure. Loose connections can cause arcing and sparking, leading to fires.
- Incorrect Wire Gauge: Using the wrong wire gauge can result in insufficient current capacity, leading to overheating and potential hazards.
- Ignoring Grounding: Proper grounding is essential for safety. Ensure the ground wire is connected correctly to prevent electrical shocks.
⚠️ Note: Always double-check your work and use a voltage tester to ensure the circuit is functioning correctly before closing the electrical box.
Troubleshooting 10 2 Romex Issues
Even with proper installation, issues can arise with 10 2 Romex wiring. Here are some common problems and troubleshooting tips:
No Power
If there is no power at the outlet or device, check the following:
- Ensure the circuit breaker is not tripped.
- Verify that the power source is functioning correctly.
- Check for loose or damaged connections.
- Use a voltage tester to check for power at the source and along the cable.
Overheating
If the wiring or outlet feels hot to the touch, it may be overloaded. Check the following:
- Reduce the number of devices connected to the circuit.
- Ensure the wire gauge is appropriate for the current load.
- Check for any signs of damage or wear on the cable.
Sparking or Arcing
If you notice sparking or arcing at the connections, it may indicate loose or damaged wires. Check the following:
- Tighten all connections and ensure they are secure.
- Inspect the cable for any signs of damage or wear.
- Replace any damaged sections of the cable.
🛠️ Note: If you are unsure about any aspect of the troubleshooting process, consult a licensed electrician to ensure safety and compliance.
Conclusion
10 2 Romex is a versatile and essential type of electrical wiring used in various residential and commercial applications. Understanding its specifications, proper installation techniques, and safety precautions is crucial for ensuring safe and efficient electrical distribution. By following the guidelines and tips outlined in this post, you can confidently work with 10 2 Romex and ensure your electrical projects are completed safely and effectively.
