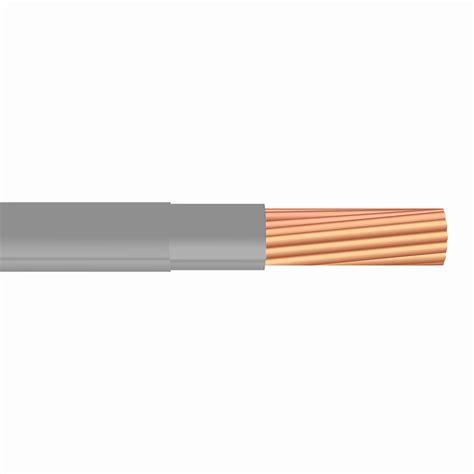

When it comes to electrical wiring, the choice of wire gauge is crucial for ensuring safety and efficiency. One of the most commonly used wire gauges is the 1 AWG copper wire. This wire is known for its robust construction and excellent conductivity, making it ideal for a variety of applications. Whether you're working on a residential, commercial, or industrial project, understanding the specifications and uses of 1 AWG copper wire can help you make informed decisions.
Understanding Wire Gauge
Wire gauge refers to the diameter of the wire, which determines its current-carrying capacity and resistance. The American Wire Gauge (AWG) system is widely used in the United States and Canada. In this system, the gauge number decreases as the wire diameter increases. For example, a 1 AWG copper wire has a larger diameter than a 2 AWG copper wire.
Specifications of 1 AWG Copper Wire
The 1 AWG copper wire has several key specifications that make it suitable for various electrical applications:
- Diameter: Approximately 0.2893 inches (7.347 mm).
- Cross-Sectional Area: About 0.812 square inches (52.26 square millimeters).
- Current-Carrying Capacity: Can handle up to 130 amperes in free air and 110 amperes in conduit, depending on the insulation type and environmental conditions.
- Resistance: Approximately 0.156 ohms per 1,000 feet at 20°C.
Applications of 1 AWG Copper Wire
1 AWG copper wire is versatile and can be used in a wide range of applications. Some of the most common uses include:
- Electrical Panels: Often used for connecting the main power supply to the electrical panel.
- Subpanels: Suitable for feeding power to subpanels in larger buildings.
- Motor Circuits: Used in industrial settings for powering large motors and machinery.
- Solar Installations: Ideal for connecting solar panels to inverters and batteries.

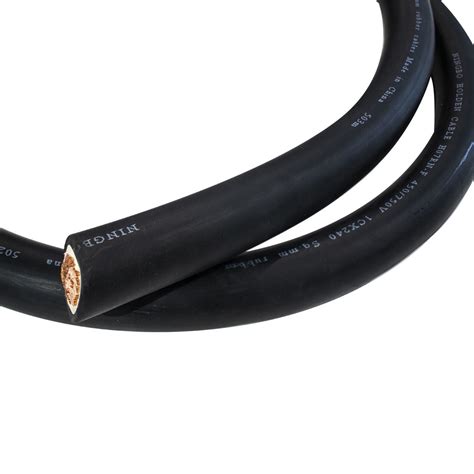

- Welding Equipment: Used in welding machines that require high current.
Advantages of Using 1 AWG Copper Wire
There are several advantages to using 1 AWG copper wire in electrical projects:
- High Conductivity: Copper is an excellent conductor of electricity, ensuring minimal power loss.
- Durability: Copper wire is resistant to corrosion and can withstand harsh environmental conditions.
- Flexibility: Despite its thickness, 1 AWG copper wire is flexible enough to be bent and shaped as needed.
- Safety: The robust construction of 1 AWG copper wire reduces the risk of overheating and short circuits.
Installation Tips for 1 AWG Copper Wire
Proper installation is crucial for ensuring the safety and efficiency of your electrical system. Here are some tips for installing 1 AWG copper wire:
- Use Appropriate Tools: Ensure you have the right tools, such as wire strippers, crimpers, and connectors, designed for heavy-gauge wire.
- Follow Local Codes: Always adhere to local electrical codes and regulations to ensure compliance and safety.
- Proper Connections: Use high-quality connectors and ensure all connections are secure and properly insulated.
- Avoid Overloading: Do not exceed the current-carrying capacity of the wire to prevent overheating and potential fires.
🔧 Note: Always turn off the power supply before working on electrical wiring to avoid the risk of electric shock.
Safety Precautions
Working with electrical wiring, especially with heavy-gauge wires like 1 AWG copper wire, requires strict adherence to safety protocols. Here are some essential safety precautions to keep in mind:
- Personal Protective Equipment (PPE): Wear appropriate PPE, including insulated gloves, safety glasses, and protective clothing.
- Proper Grounding: Ensure all electrical components are properly grounded to prevent electrical shocks.
- Avoid Water: Keep electrical wiring away from water and moisture to prevent short circuits.
- Regular Inspections: Conduct regular inspections of your electrical system to identify and address any potential issues.
Comparing 1 AWG Copper Wire with Other Gauges
To better understand the suitability of 1 AWG copper wire for your project, it’s helpful to compare it with other common gauges. Here’s a comparison table:
| Wire Gauge | Diameter (inches) | Current-Carrying Capacity (Amperes) | Resistance (ohms per 1,000 feet) |
|---|---|---|---|
| 1 AWG | 0.2893 | 130 (free air), 110 (conduit) | 0.156 |
| 2 AWG | 0.2576 | 115 (free air), 95 (conduit) | 0.193 |
| 3 AWG | 0.2441 | 100 (free air), 85 (conduit) | 0.242 |
| 4 AWG | 0.2254 | 85 (free air), 70 (conduit) | 0.302 |
As shown in the table, 1 AWG copper wire has a higher current-carrying capacity and lower resistance compared to smaller gauges, making it more suitable for high-current applications.
Environmental Considerations
When selecting electrical wiring, it’s important to consider the environmental conditions in which it will be used. 1 AWG copper wire is designed to withstand a variety of environments, but there are still factors to consider:
- Temperature: Ensure the wire is rated for the operating temperature of your application.
- Moisture: Use wire with appropriate insulation to protect against moisture and corrosion.
- Chemical Exposure: Choose wire that is resistant to chemical exposure if your application involves harsh chemicals.
🌡️ Note: Always check the wire's temperature rating to ensure it can handle the heat generated by the electrical current.
Maintenance and Longevity
Proper maintenance is essential for ensuring the longevity and reliability of your electrical system. Here are some tips for maintaining 1 AWG copper wire:
- Regular Inspections: Conduct regular visual inspections to check for signs of wear, corrosion, or damage.
- Clean Connections: Keep all connections clean and free of debris to ensure proper conductivity.
- Protect from Physical Damage: Use conduit or other protective measures to shield the wire from physical damage.
- Avoid Overloading: Ensure the wire is not overloaded beyond its current-carrying capacity.
By following these maintenance tips, you can extend the lifespan of your 1 AWG copper wire and ensure the safety and efficiency of your electrical system.
In summary, 1 AWG copper wire is a robust and versatile option for a wide range of electrical applications. Its high conductivity, durability, and flexibility make it ideal for use in residential, commercial, and industrial settings. By understanding its specifications, applications, and installation tips, you can make informed decisions and ensure the safety and efficiency of your electrical projects. Always prioritize safety and adhere to local codes and regulations when working with electrical wiring.
