1/0 Gauge Wire

When it comes to electrical wiring, the gauge of the wire is a critical factor that determines its current-carrying capacity and overall performance. One of the most robust and high-capacity wires available is the 1/0 gauge wire. This type of wire is commonly used in heavy-duty applications where a significant amount of electrical current needs to be transmitted efficiently and safely. Understanding the specifications, applications, and installation guidelines for 1/0 gauge wire is essential for anyone involved in electrical work.

Understanding Wire Gauge

Wire gauge refers to the diameter of the wire, which is inversely proportional to the gauge number. This means that a lower gauge number indicates a thicker wire. The ¹⁄₀ gauge wire is one of the thickest wires available, making it ideal for high-current applications. The gauge system is standardized, and understanding it helps in selecting the right wire for specific electrical needs.

Specifications of ¹⁄₀ Gauge Wire

The ¹⁄₀ gauge wire has several key specifications that make it suitable for heavy-duty applications:

• Diameter: Approximately 0.46 inches (11.68 mm).
• Current-Carrying Capacity: Can handle up to 150 amperes, making it suitable for high-power circuits.
• Resistance: Lower resistance compared to thinner wires, which reduces power loss and heat generation.
• Material: Typically made of copper or aluminum, with copper being more conductive and durable.

Applications of ¹⁄₀ Gauge Wire

The ¹⁄₀ gauge wire is used in a variety of applications where high current and reliability are essential. Some of the most common applications include:

• Electrical Panels: Used for connecting the main power supply to the electrical panel.
• Subpanels: Connecting subpanels to the main electrical panel.
• Large Appliances: Powering heavy-duty appliances like electric ranges, dryers, and air conditioners.
• Solar and Wind Power Systems: Used in renewable energy systems to transmit power from generators to storage or usage points.
• Industrial Machinery: Powering large industrial equipment and machinery.

Installation Guidelines for ¹⁄₀ Gauge Wire

Installing ¹⁄₀ gauge wire requires careful planning and adherence to safety standards. Here are the key steps and considerations:

• Planning: Determine the length of the wire needed and the path it will take. Ensure that the wire is appropriately sized for the current it will carry.
• Safety Precautions: Always turn off the power supply before starting any electrical work. Use appropriate personal protective equipment (PPE) and follow safety protocols.
• Routing: Route the wire through conduits or raceways to protect it from physical damage and environmental factors. Ensure that the wire is not bent sharply, as this can damage the insulation.

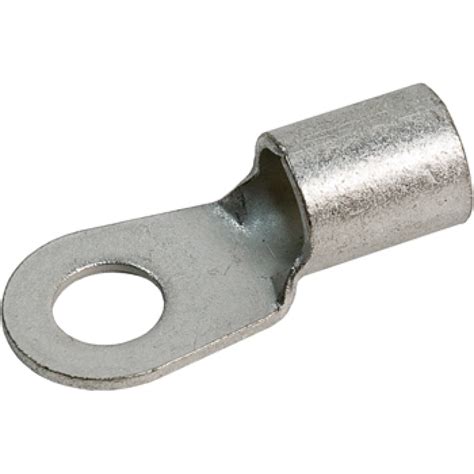

• Connections: Use appropriate connectors and terminals designed for ¹⁄₀ gauge wire. Ensure that all connections are secure and properly insulated.
• Grounding: Properly ground the wire to ensure safety and compliance with electrical codes.

🔧 Note: Always consult local electrical codes and regulations before installing 1/0 gauge wire to ensure compliance and safety.

Types of ¹⁄₀ Gauge Wire

The ¹⁄₀ gauge wire comes in various types, each suited for different applications. The most common types include:

• THHN/THWN: Thermoplastic High Heat-resistant Nylon-coated (THHN) and Thermoplastic Heat and Water-resistant Nylon-coated (THWN) wires are commonly used in electrical panels and conduits. They are suitable for both dry and wet locations.
• XHHW: Cross-Linked Polyethylene High Heat-resistant Wire is designed for high-temperature applications and is often used in industrial settings.
• USE-2: Underground Service Entrance Wire is designed for direct burial and is commonly used for underground service connections.

Choosing the Right ¹⁄₀ Gauge Wire

Selecting the appropriate ¹⁄₀ gauge wire depends on several factors, including the application, environment, and specific requirements. Here are some key considerations:

• Application: Determine the specific use case, such as residential, commercial, or industrial, to choose the right type of wire.
• Environment: Consider the environmental conditions, such as temperature, moisture, and physical hazards, to select a wire with suitable insulation and protection.
• Current Requirements: Ensure that the wire can handle the required current without overheating or degrading.
• Code Compliance: Verify that the wire meets local electrical codes and standards.

🔧 Note: Always consult with a licensed electrician if you are unsure about the type of 1/0 gauge wire to use for your specific application.

Maintenance and Safety

Maintaining ¹⁄₀ gauge wire and ensuring its safe operation is crucial for the longevity and reliability of electrical systems. Here are some key maintenance and safety tips:

• Regular Inspections: Periodically inspect the wire for signs of wear, damage, or corrosion. Replace any damaged sections immediately.
• Proper Storage: Store the wire in a dry, cool place away from direct sunlight and heat sources to prevent degradation.
• Avoid Overloading: Ensure that the wire is not overloaded beyond its current-carrying capacity to prevent overheating and potential fires.
• Use Appropriate Tools: Use tools designed for working with ¹⁄₀ gauge wire to avoid damaging the insulation or the wire itself.

Common Mistakes to Avoid

When working with ¹⁄₀ gauge wire, it’s essential to avoid common mistakes that can compromise safety and performance. Some of these mistakes include:

• Incorrect Sizing: Using a wire that is too small for the current requirements can lead to overheating and potential fires.
• Improper Connections: Poorly made connections can cause arcing, overheating, and potential fires.
• Inadequate Protection: Failing to protect the wire from physical damage or environmental factors can lead to insulation failure and short circuits.
• Ignoring Codes: Not following local electrical codes and standards can result in unsafe installations and potential legal issues.

🔧 Note: Always double-check your work and consult with a professional if you are unsure about any aspect of installing or maintaining 1/0 gauge wire.

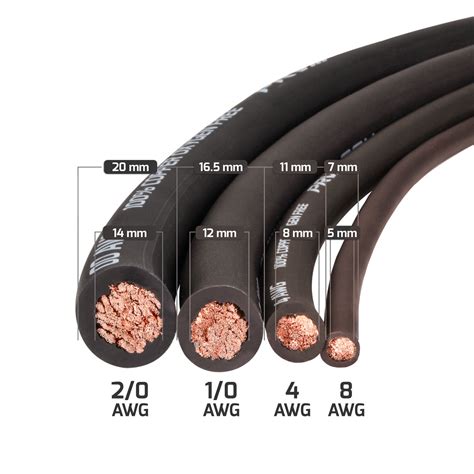

Comparing ¹⁄₀ Gauge Wire with Other Gauges

To better understand the capabilities and limitations of ¹⁄₀ gauge wire, it’s helpful to compare it with other common wire gauges. Here is a comparison table:

As shown in the table, 1/0 gauge wire is suitable for a wide range of high-power applications, but for even higher current requirements, thicker gauges like 2/0, 3/0, and 4/0 may be necessary.

Future Trends in Electrical Wiring

The field of electrical wiring is continually evolving, driven by advancements in technology and increasing demand for energy efficiency. Some future trends in electrical wiring include:

• Smart Wiring Systems: Integration of smart technologies to monitor and control electrical systems remotely.
• Renewable Energy Integration: Increased use of ¹⁄₀ gauge wire in renewable energy systems to transmit power from solar and wind sources.
• Advanced Materials: Development of new materials for wire insulation and conductors to improve performance and durability.
• Sustainable Practices: Emphasis on sustainable and eco-friendly wiring practices to reduce environmental impact.

These trends highlight the ongoing importance of 1/0 gauge wire in modern electrical systems and its role in supporting future technological advancements.

In summary, ¹⁄₀ gauge wire is a critical component in high-power electrical systems, offering robust performance and reliability. Understanding its specifications, applications, and installation guidelines is essential for anyone involved in electrical work. By following best practices and adhering to safety standards, you can ensure the safe and efficient operation of electrical systems using ¹⁄₀ gauge wire.
